FIRST LASER - 1960. The first operable laser was constructed by Theodore Maiman while employed at Hughes Research Laboratories as a section head in 1960. He developed, demonstrated, and patented the laser using a pink ruby medium.

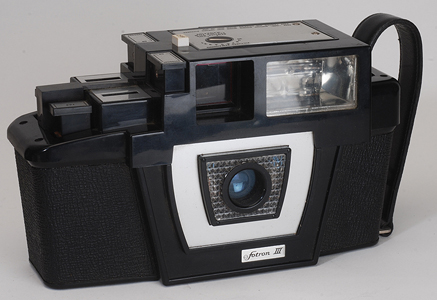

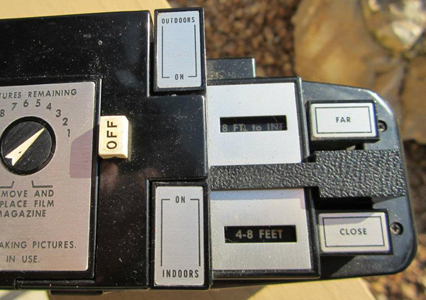

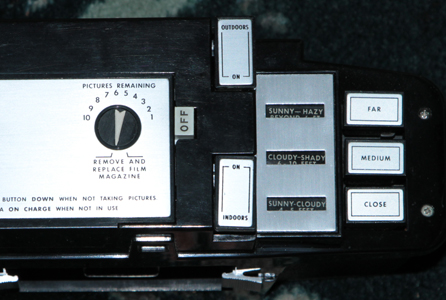

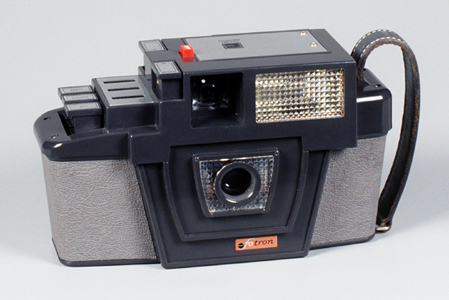

Original Fotron and Fotron III
Original Fotron with three focus buttons and the Fotron III with two focus buttons
TRAID FOTRON - 1960. The Fotron was a camera manufactured in Glendale, California by the Traid Corporation and sold door-to-door during the 1960s. Aimed primarily at women, it was marketed as a simpler alternative to "complicated" traditional cameras. The Fotron had a number of innovative features, including a built-in electronic flash, rechargeable battery, motorized film advance, and push-button exposure control. It used standard 828 rollfilm packaged in a proprietary snap-in cartridge. The film had to be returned to the manufacturer for processing. The first Fotron was grey, the second (the 1200) and the third (the Fotron III) were black. The first two had three buttons on top for adjusting distance, the Fotron III had only two. The camera had to be charged for 18 hours to shoot one 10-exposure cartridge, and 72 hours for more than one. Prices varied considerably depending on what the sales person was able to obtain, usually $150-$300 ($1,166-$2,333 in 2012 dollars), but sometimes up to $500 ($3,888 in 2012 dollars). These prices were considered so outrageous in comparison to the camera's actual value that some buyers eventually brought a lawsuit against the company. In actual practice the Fotrons were found not to be a simple alternative to traditional cameras and many were seldom used. As a result, they are readily available on eBay in excellent to like-new condition.
NIKKOREX-8 - 1960. Nikon's first entry in the home movie market. The Nikkorex-8 was was the first attempt by a camera manufacturer to build a CdS into a camera body, either still or movie.
KODAK AUTOMATIC RETINA I - 1960. Retina Automatic I is a 35mm film viewfinder camera made by Kodak AG and produced between 1960-63. Kodak's three Retina Automatic models were the first Retinas to have automatic exposure control. Built on the same common chassis, they differed purely in regard to lens & shutter configuration.

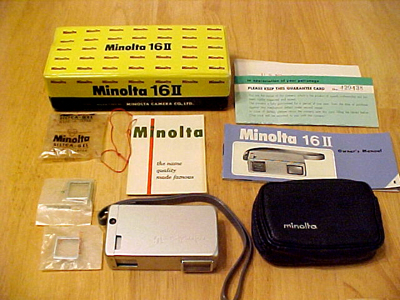

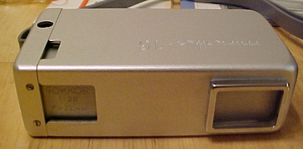

MINOLTA 16-II - 1960. An example of the many sub-miniature cameras available to collectors. The Minolta 16-II used 16 mm film and is an evolution of the Minolta 16. Lens: 22mm (f2.8-16), fixed-focus regulated to approximately 3 meters. Shutter 1/30 to 1/500 sec + time exposure. Items shown in the small envelopes are attachment lenses for telephoto and close-up. The above camera in like-new condition with manual, lenses and original box was purchased on eBay for only $25.

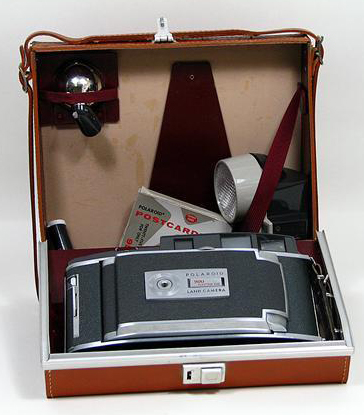

POLAROID MODEL 900 - 1960. The Model 900 was Polaroid's first completely automatic exposure controlled shutter 1/12 sec - 1/600 sec., aperture 8.8-82.

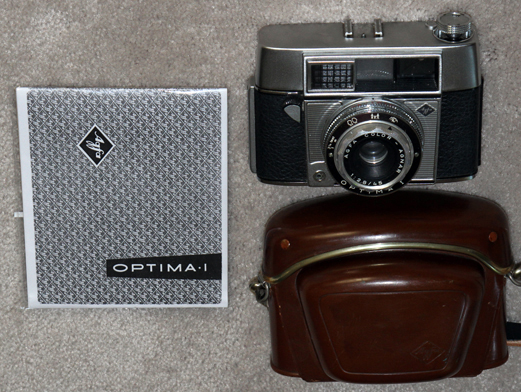

AGFA OPTIMA I - 1960. Successor to the original Optima of 1959. Lens f/2.8 45 mm. Shutter 1/60 - 1/500 sec. The Optima I was available for around $70 in 1960 which would be about $515 in 2010 dollars.

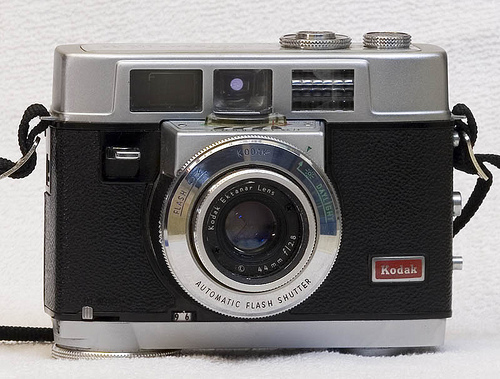

KODAK MOTORMATIC 35 - 1960-2. The Motormatic was Kodak's last American made 35mm camera. The Motormatic name was derived from the fact that the film was driven by a spring-wound motor using a large knob on the bottom of the camera. The MSRP was $109.50. In 2012 dollars that would be about $850. Lens f/2.8, shutter 1/40-1/250 sec.
EUGENE F. LALLY - 1961. While working at JPL and later at Convair, Eugene Lally wrote internal and space conference papers proposing various spacecraft designs and methods to explore the Moon, Mercury, Mars, and Jupiter. He presented a paper to an American Rocket Society conference in 1961 on "mosaic guidance". He took the digitization concept developed in 1957 by Russel Kirsch to its next logical step with his mosaic guidance proposal whereby arrays of detectors in a camera would detect the position of objects in space for the purpose of guidance and navigation. Lally is given credit by some as having coined the term "digital photograph," but we haven't been able to independently verify that claim. The basis for this claim appears to be an article written by Lally himself, How Spaceflight was Born, a large portion of that article being devoted to contributions by Lally (see fourth reference below), with lesser portions of the article being devoted to the contributions of Robert Goddard, Hermann Oberth, Wernher von Braun and Krafft Ehricke. According to Lally, Fairchild Semiconductors approached him in 1973 with a CCD and asked him to build a digital camera prototype similar to his Mosaic Guidance proposal. Lally said he declined because he was too busy working on space programs, developing products with his company and other activities. Lally said that he suggested they contact Kodak which they did and Kodak accepted. Lally's idea of an electronic camera using digitized information was a natural progression from the Amstutz Electro-Artograph (see 1895) which could scan photographs and transmit them over wire, A.A. Campbell's electronic camera (see 1908), the Bartlane transmission System (see 1920) which digitized images using punched tape then transmitted them by cable, and the Kirsch digital scanner of 1957, which made a digital photo of what it saw.
It is difficult to independently verify many of the
claims by Mr.Lally as most of the information on the Internet seems to
be based almost entirely on statements by Lally himself. One
editor of the Wikipedia article on Mr. Lally removed much of what
he referred to as peacock material (self promoting) contributed by
anonymous sources, but presumed by the editor to be from
Lally. He twice nominated the article for deletion altogether
because of "outrageous and
inflated claims,"one nomination being approved in September of
2009, but rejected in October of 2011. At the same time, a
defender of Lally vigorously objected to the editor's comments and
called it, "discrediting the life and work of a genius." Until
an independent and reliable source either verifies or discredits Mr.
Lally's numerous claims we must defer judgement on his contributions to

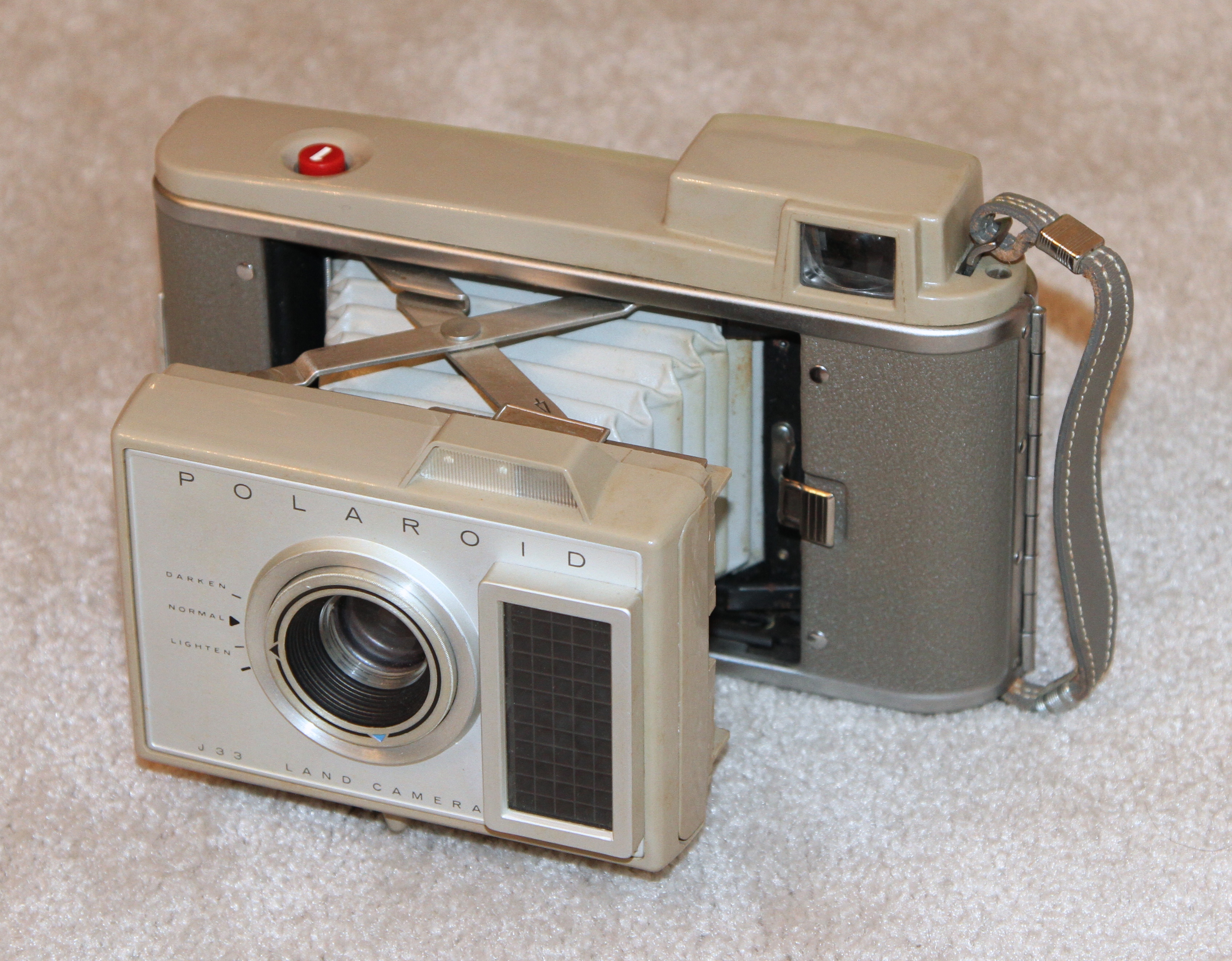

POLAROID J33 - 1961. The J33 was produced from 1961 to 1963. It had a plastic single element meniscus lens and used black and white 3000 speed Polaroid type 30 roll film. The shutter speed was controlled by a selenium cell. Shutter 1/15 second - 1/1000 second. There was a fold out flash to the right of the cameras face. it twisted to provide a direct flash or a bounce flash. Original MSRP was $74.
The above camera in near mint condition was donated to DigiCamHistory.Com by Ron Hardwick, one of Ohio's top professional golf instructors.

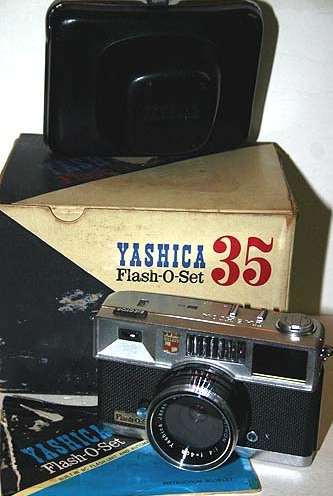

YASHICA FLASH-O-SET- 1961. Although its appearance is that of a rangefinder, the Flash-O-Set was really a point-and-shoot camera. Lens: 40mm fixed focus, aperture ?4.0. Shutter: fixed at 1/60 second. The Flash-O-Set was one of the few 35mm cameras to have a built in bulb flash holder. It required a peanut-sized AG-1 bulb which fit into the socket on the front upper left of the camera (as seen from the front). The above camera in mint conditon with case, manual and original box was purchased for only $20.http://www.yashica-guy.com/document/chrono.html

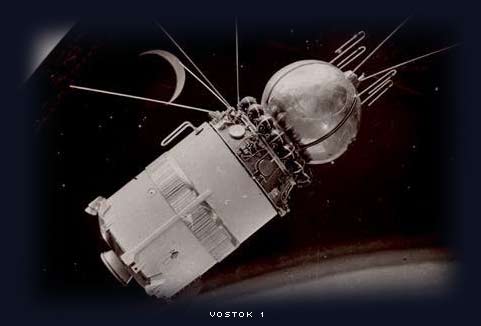

FIRST MANNED SPACE FLIGHT - 1961. On April 12, 1961, Yuri Gagarin of the Soviet Union became the first human to orbit Earth. The name of his spacecraft was the Vostok 1. Vostok 1 had two sections: one section was for Yuri and a second section for supplies needed for survival such as oxygen and water. Vostok 1 circled Earth at a speed of 27,400 kilometers per hour. The flight lasted 108 minutes. Vostok's reentry was controlled by a computer. Gagarin did not land inside of Vostok 1. He ejected from the spacecraft and landed by parachute.

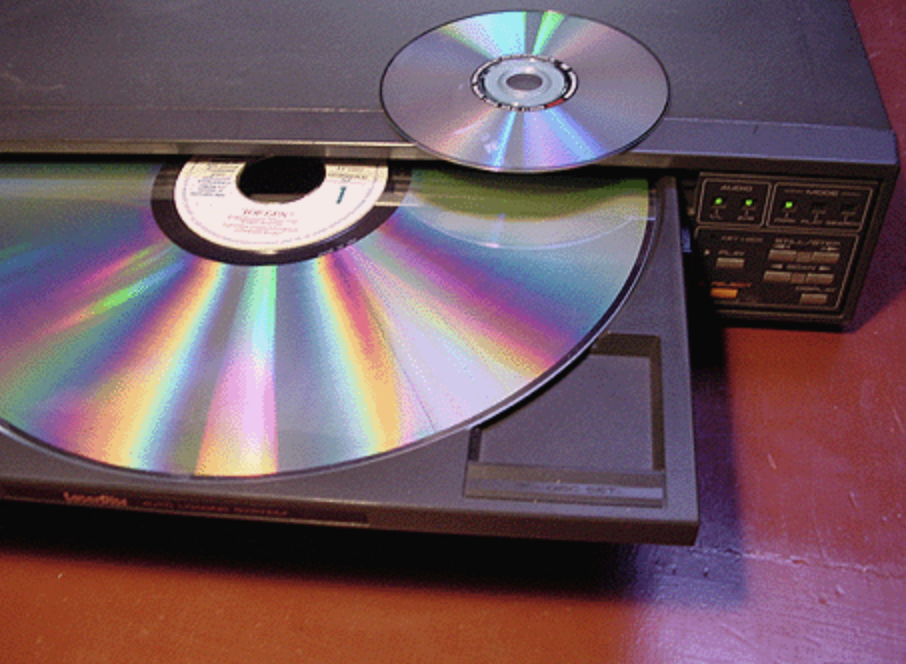

DISK - 1961.
David Paul Gregg first envisioned the VIDEODISC in 1958. He patented it
in 1961 and again in 1969. When the videodisc or laserdisc
finally made it to market (see Modern Video Disc - 1978) it didn't sell well for a variety of reasons
and was soon replaced by the CD (Compact Disc)

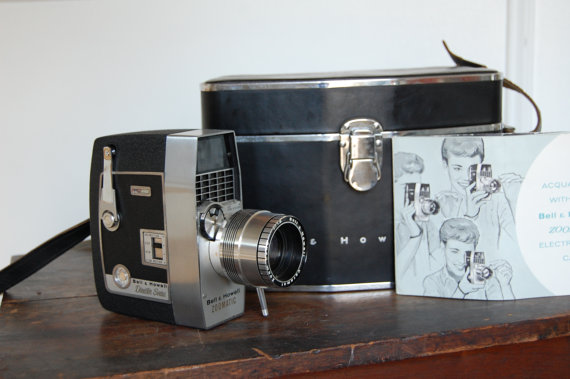

BELL & HOWELL 424 PERPETUA ZOOMATIC - 1961. There were several models of this camera, incuding the 414PD which became famous as the one Abraham Zapruder used to film the Kennedy assination. The P stood for power zoom and the D for dual electric eye. The Zoomatic was an upper level consumer camera with prices ranging up to $208, which would be about $1500 in 2010 dollars. The case was of high quality leather both inside and outside. However, many film movie cameras these days can be purchased for almost nothing. The above camera in excellent condition with case and original manual sold for $9.99 on eBay. The case alone is worth far more than that and could be used for a wide variety of purposes other than as a camera case.

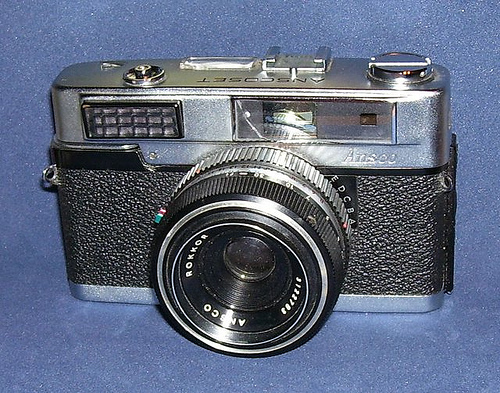

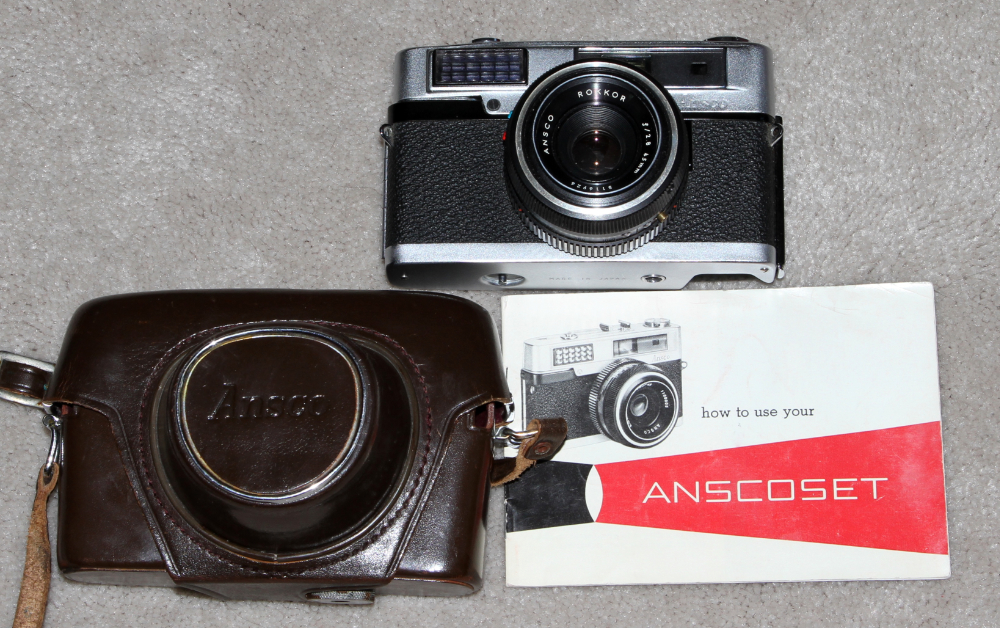

ANSCO ANSCOSET - 1960. Also
sold as the Minolta Uniomat. Manufactured by Chiyoda Kogaku. The
Anscoset was semi-automatic, but had a new feature. There was no
special shutter-diaphragm hook-up. It didn't need one because the
shutter also acted as the diaphragm! Depending on the exposure
setting, the shutter blades would open more or less, thereby changing
Shutter: leaf shutter with speeds from 1/8 sec. to 1/1000 sec., X and M
flash synchronization, "program shutter." Lens: Rokkor 1:2.8/45mm. MSRP $69.95 (about $460 in 2020).

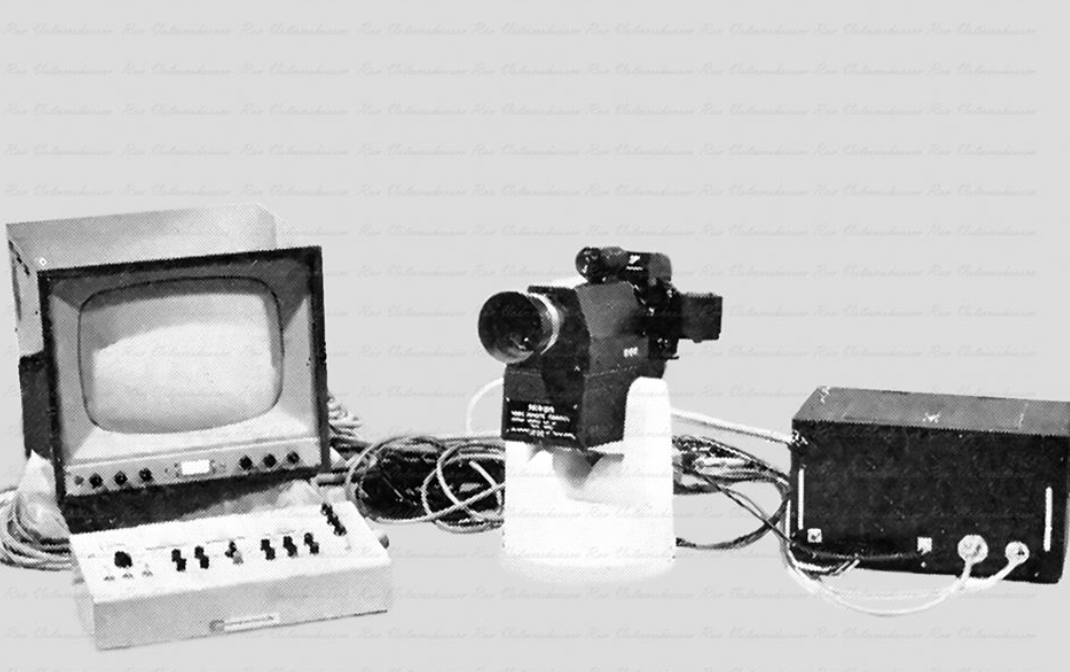

NIKON VIDEO REMOTE CONTROL - 1962. The Nikon Video Remote Control (TV remote-controlled recording unit) was manufactured by combining the Nikon F, the 250-exposures motor drive, and Auto NIKKOR Telephoto-Zoom 8.5 - 25cm f/4 - 4.5 with the intent to simultaneously provide control of the camera functions by TV and the recording and photography by camera. An updated system was also experimented with in 1988, but neither system was marketed.
TARON MARQUIS - 1962. According to the Japanese Camera Museum, the Taron Marquis (also sold as the Rival Rangefinder outside of Japan) was the world's first 35mm camera with a built-in CdS sensor (Cadmium Sulfide). Lens: 1:1.8, 45mm. Shutter: B, 1 - 1/500 second.

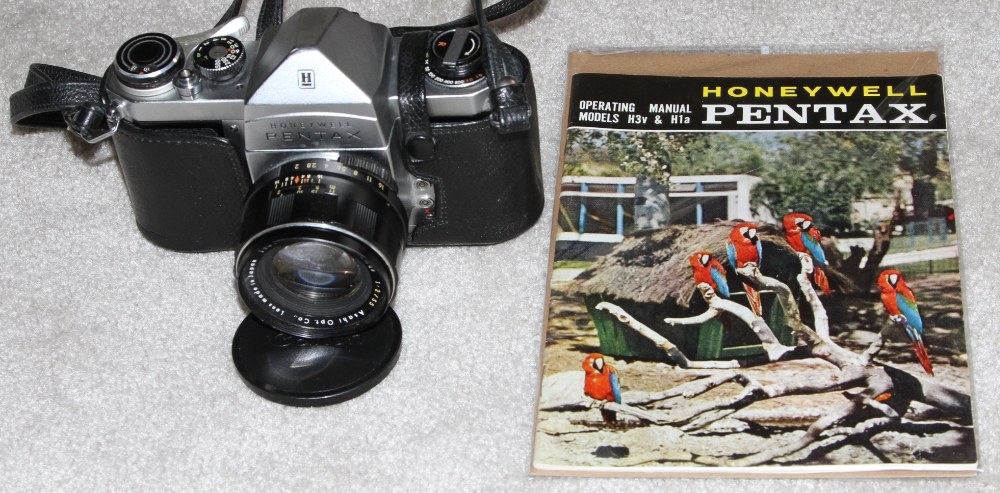

HONEYWELL PENTAX H1a - 1962. Sold in the U.S. as the Honeywell Pentax H1a, the Asahi Pentax H1a was equipped with a Auto-Takamar f/1.8 55 mm lens, or as above, Super-Takumar f/2 55 mm lens. The Super-Takumar lenses are considered to be of very high quality and those such as the f/2 55 mm above are going for $30-$50 on eBay at this time (Aug 2010), which makes this this near mint camera an even greater buy at only $12.50! Want to build a great collection at relatively little cost? Check eBay for cameras which are within a day of two of endng and with no bids. Check the photos and description and if it seems like a collectable camera place a bid for the minimum amount. Do this for many cameras and you will be surprised at how often you can obtain a very nice item for your collection at only $5-15.

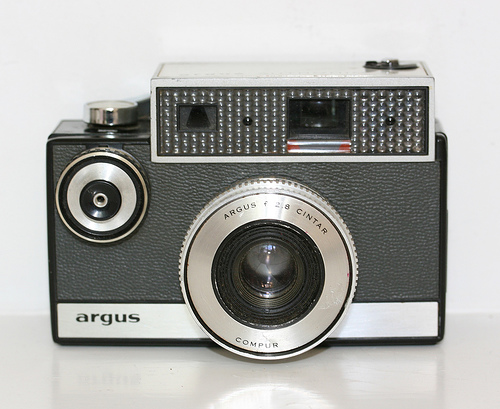

ARGUS AUTRONIC I, 1960 & II, 1962. Autotronic I: Lens is Argus Cintar 50mm f/3.5 or f/2.8. Autotronic II: Lens: Argus Cintar 50mm f/2.8 filter thread 27mm. Do a little research when buying old cameras. This Autronic I was advertised as very rare on one eBay site with a buy now price of $230, while other sites were selling identical condtion (or better) units for $11-20! If you decide to become a camera collector, McKeown's Price Guide to Antique and Classic Cameras is a wise investment even if you have to purchase an older edition (the newest edition is 2005-2006 as of August 3013).

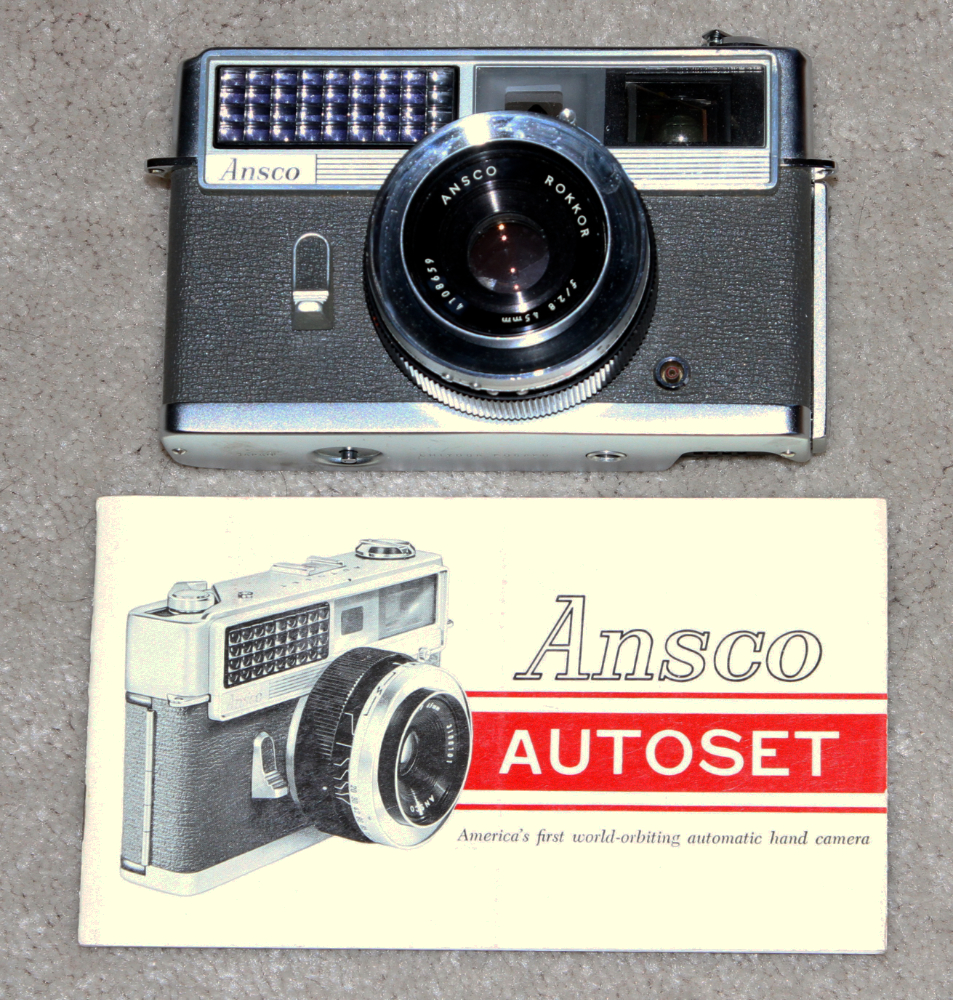

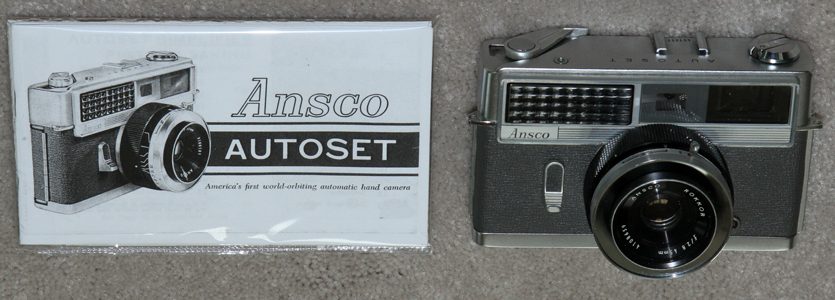

ANSCO AUTOSET - 1962. Also sold as the Minolta Hi--Matic. The Ansco version was used by John Glen when he made the first American orbit of the earth in 1962 and the first photo by a human from space. Lens f/2.8 45 mm. Shutter B, 1/30, 1/60, 1/125 and 1/250.

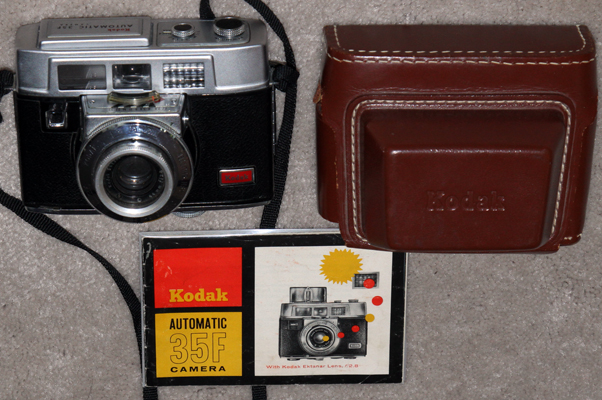

KODAK AUTOMATIC 35F- 1962-66. The 35F was one in a series of Automatics and Motormatics produced from 1959 through 1969. Lens f/2.8, 44 mm. Shutter 1/40 and 1/80 sec. Top mounted AG-1 flash socket. MSRP $99.50 (about $718 in 2010 dollars). The above camera and case in like new condition were obtained on eBay for exactly $1!

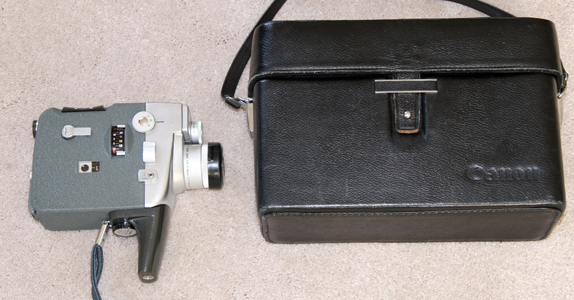

CANON ZOOM 8 EEE - 1962. Original MSRP $115, approiximately $830 in 2010 dollars. Another well-made movie camera of the era which was obtained on eBay in mint condition with case for the grand price of $1.
AGFA OPTIMA Ia - 1962. A smaller and less expensive version of the 1960 Optima I. Lens f/2.8 45 mm. Shutter 1/30 - 1/250 sec.

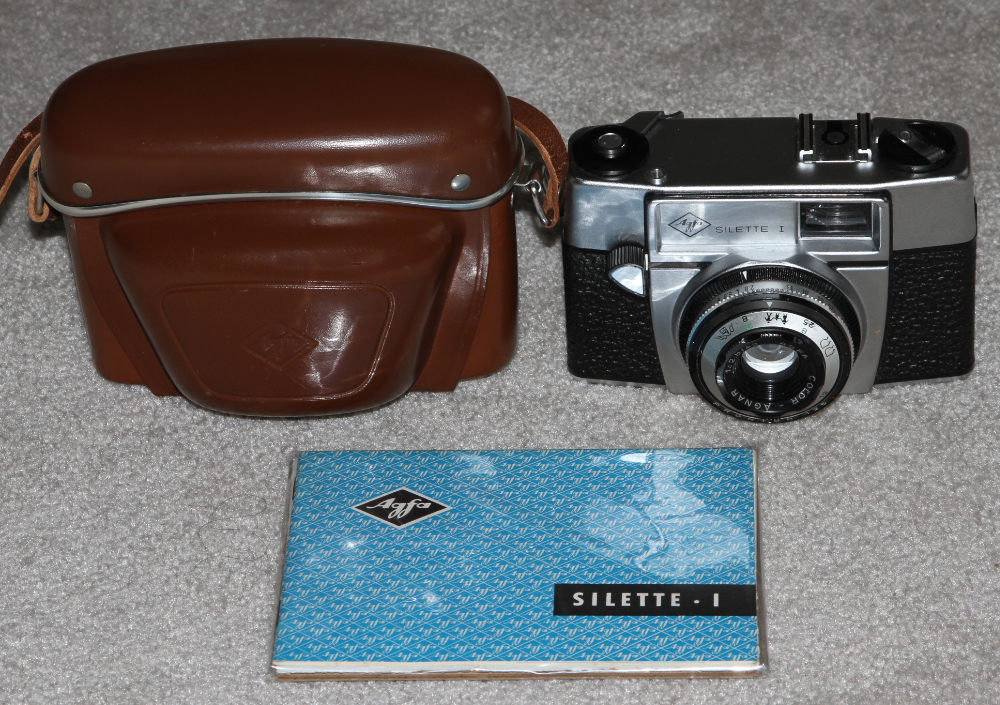

AGFA SILETTE I - 1962. Another inexpensive Agfa with its unusual front shutter lever. Lens f/2.8 45 mm. Shutter B, 1/30, 1/60 and 1/125 sec. The above camera and case appear to be brand new. They were purchased for $13.

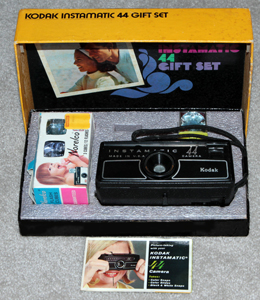

Kodak Instamatics 50, 100, 104 and 44 Gift Set
KODAK INSTAMATICS - 1963. The very first 126 camera ever to be marketed, the Instamatic 50 was introduced in 1963, a month before the Instamatic 100. Numerous models were introduced up through the early 1970s. There are about six levels of specification, and several chronological steps relating to improved flash or metering. Instamatic 50, 100, 104 and 44 shown above. The upscale 400 is shown below with a tele lens and simulated leather carrying case. The Instamatic line of Kodak cameras makes for an interesting subset of collectibles at minimum cost. The below 400 in excellent condition along with two Instamatic 104s in excellent condition were obtained on eBay with a winning bid of $6.49!
LEVELS OF SPECIFICATION:
Basic Models: ~ 44, 50, 100, 104, 124, X-15, X-15F.
Basic Models with Metering: ~ 300, 304, 134, 314, 333X, X-30, X-35, X-35F.
Spring Motor: ~ 150, 154, X-25.
Spring Motor and Meter ~ 400, 404, 414, X-45.
Metered f2.8 lens: ~ 324, 700, 714.
Metered f2.8 lens Motor & RF: ~ 800, 804, 814, X-90.

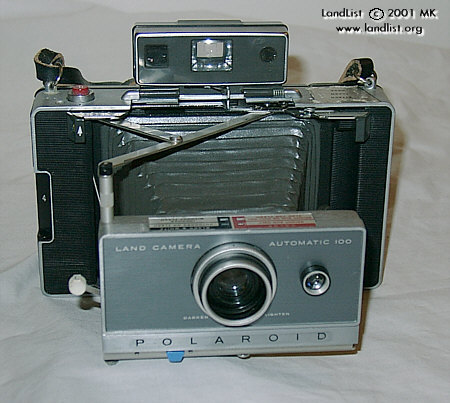

POLAROID LAND MODEL 100 - 1963. First to use transistorized electronic shutter in a mass-produced camera, first Polaroid pack-film camera.
INSTANT COLOR FILM - 1963. Polaroid introduced instant color film (type 38 and type 48 Polacolor) along with the Polaroid Model 100 camera.

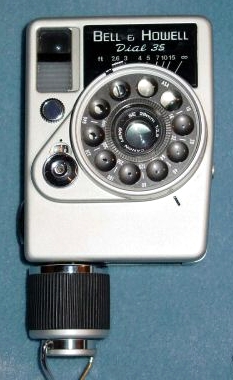

BELL & HOWELL DIAL 35 - 1963. The Dial cameras manufactured by Canon and sold under the Canon or Bell and Howell names were a unique approach at that time. The cameras were small, due to the half-frame format, but offered exceptional features. The lens could be focused with a distance scale on the lens or distance symbols in the viewfinder. Close-focusing to 0.8 meters. Shutter speeds were set manually from 1/30 - 1/250. The aperture could be set manually or automatically with the built-in CDS meter. Uniquely designed cameras such as the Dials 35s add interest to any camera collection and a collection made up entirely of such unusual designs is easily within the financial capabilities of anyone who would like to begin a camera collection.

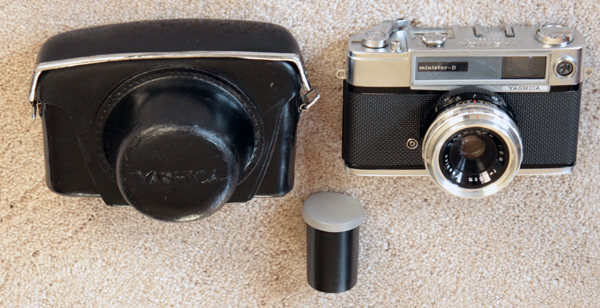

YASHICA MINISTER D - 1963. The D was one of many well made electronic cameras produced by Yashica that heralded a new age of electronically assisted phtography that made good photographers out of those of us who had previously hoped that at least one out of four of our photos would turn out to be properly exposed when we picked up our prints from the photo lab. One reviewer said, "As hard as we look, we can't find anything that's not to like on this camera." For those who would still like to dabble in print film or slides, or who are looking for nice display items for their camera collection, there are still many Minister Ds available on eBay in excellent condition at giveaway prices. The above cameras was purchased for only $10 and shows little signs of use (can't say the same for the case).
PICTUREPHONE - 1964. In 1964, AT&T demonstrated the first video calls on their Picturephone at the World's Fair in New York. The concept of video telephone is as old as the telephone itself, with theoretical systems being recorded as far back as the 1870s (see bottom of our 1950s page, FIRST MARKETED VIDEOPHONE, 1959). The 1927 movie, Metropolis, involved a scene with a video phone. There was also a video phone sequence in the movie, 2001, A Space Odyssey.
FIRST U.S. SPACECRAFT PHOTO OF THE MOON - 1964. On July 31, 1964, Ranger 7 crashed into the Moon. Seventeen minutes before impact it snapped this picture - the first image of the Moon ever taken by a U.S. spacecraft. Before impacting the moon this close-up photo was transmitted by televison back to earth.
FIRST ELECTRONIC CAMERA PHOTOS OF MARS - 1964. In July 1964, NASA, at the Jet Propulsion Lab in Pasadena, California, received electronic signals from video cameras on board the Mariner 4 (IV) spacecraft on its way to Mars. The image above is the first close-up image ever taken of Mars (NASA).
Click on image below to see two larger views of the surface of Mars.
Mariner 6 and Electronic Photo of Mars (NASA)

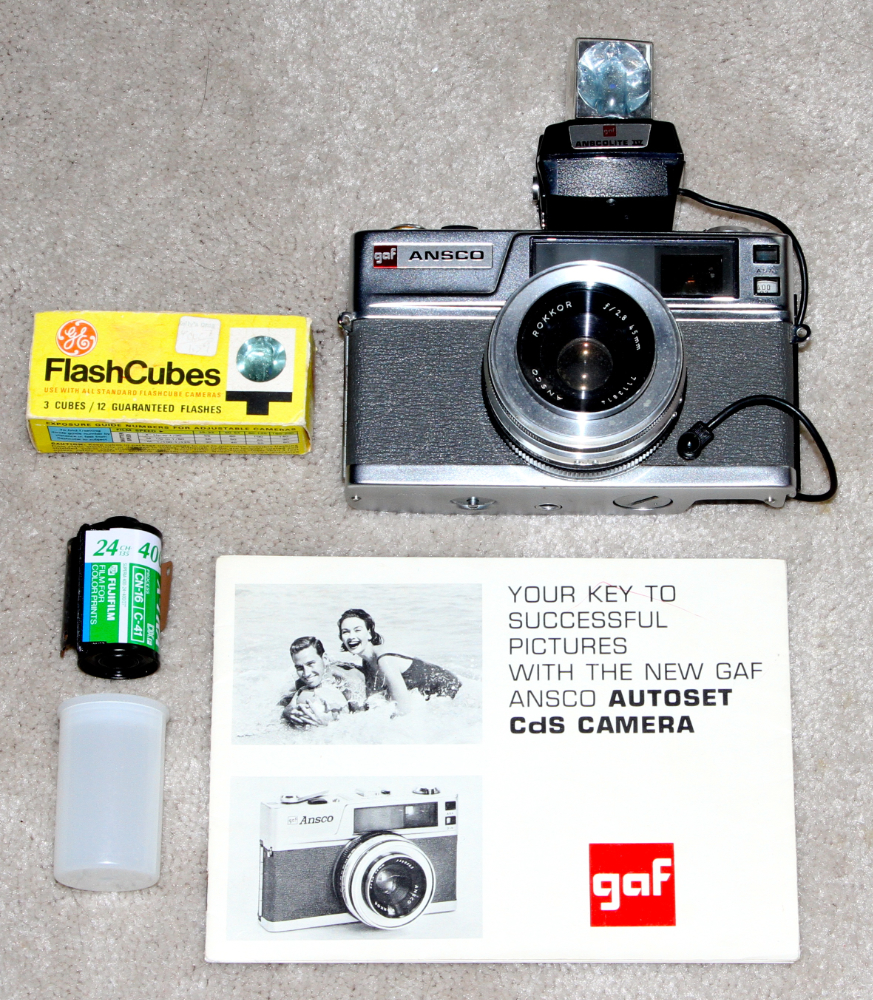

ANSCO AUTOSET Cds - 1964/5.
The Ansco Autoset CdS was a viewfinder camera manufactured by Minolta
and marketed by Ansco (In 1965, Ansco transitioned to using the
brand GAF, after their corporate parent, General Aniline &
Film.) The autoexposure system used a CdS meter cell;
but it was located in the top housing rather than within the lens
filter ring (as with the contemporary Minolta Hi-Matic 7).
Lens: 45mm f/2.8. Shutter: 1/30th sec to 1/500th sec,
KODAK INSTAMATIC M2 - 1965. Known as the "Brick" the M2 is an example of an inexpensive Super 8 movie camera that is still relatively common in excellent condition and which can be purchased on eBay and other auction sites with box and manual for as little as $5. Introduced in 1965 together with the new Super 8 film, it was an entry-level camera with a fixed focus f/1.8 lens, manual exposure and single filming speed (18 frames per second).http://camerapedia.wikia.com/wiki/Kodak_Instamatic_M2
AGFA 5155 MOVEXOOM - 1964. Typical 8mm movie camera of the era. Such cameras incorporated several improvements over their early predecesors such as electric rather than windup drive and electronic exposure metering rather than manual settings. Agfa Variogon f/1.8 variable focal length lens (9-30mm). Aperture f/1.8 to f/16. Sixteen frames per second or single shot (5155 manual).

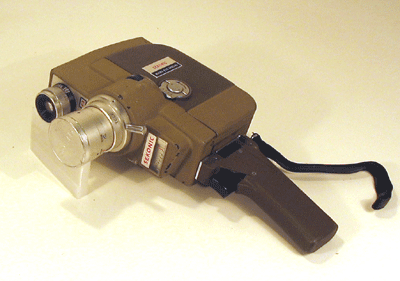

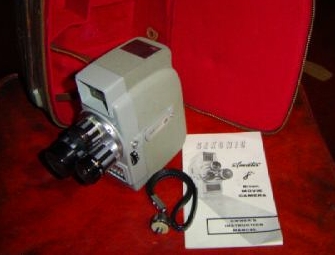

Two other 8mm cameras of the '60s were the Sekonic Elmatic and the Micro-Eye. Sekonic is well known as a maker of fine light meters, but also produced film movie cameras. If you are interested in starting a collection of your own, vintage movie cameras can be purchased very inexpensively. The two cameras below were purchased on eBay in excellent condition for a total cost of only $12.98!

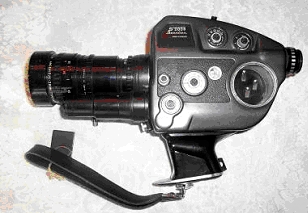

BEAULIEU 2008S - 1965. The Beaulieu S2008 is an example of a French made movie camera of the era. Beaulieu Cinema has made many fine movie cameras over the years and they are highly prized by collectors.
KODAK INSTAMATIC 804 - 1965-70. Lens: Ektanar f/2.8 38mm. Shutter: B, 1/60, 1/250 sec. Film: 126 cartridge. The 804 had a somewhat unusual film advance system which involved a pull tab on the outside of the camera that was used to wind an internal spring motor. The original MSRP for the 804 was $124.50 which would be about $838 in 2009 dollars.

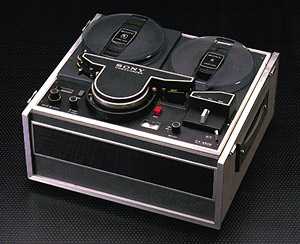

FIRST HOME VIDEO TAPE RECORDER - 1965. The Sony all-transistor CV-2000 was the first video tape recorder aimed at the consumer market - CV stood for "Consumer Video". Sony's VTR weighed 70 pounds and had a built-in monitor for viewing the picture.
CLICK HERE FOR MORE INFO

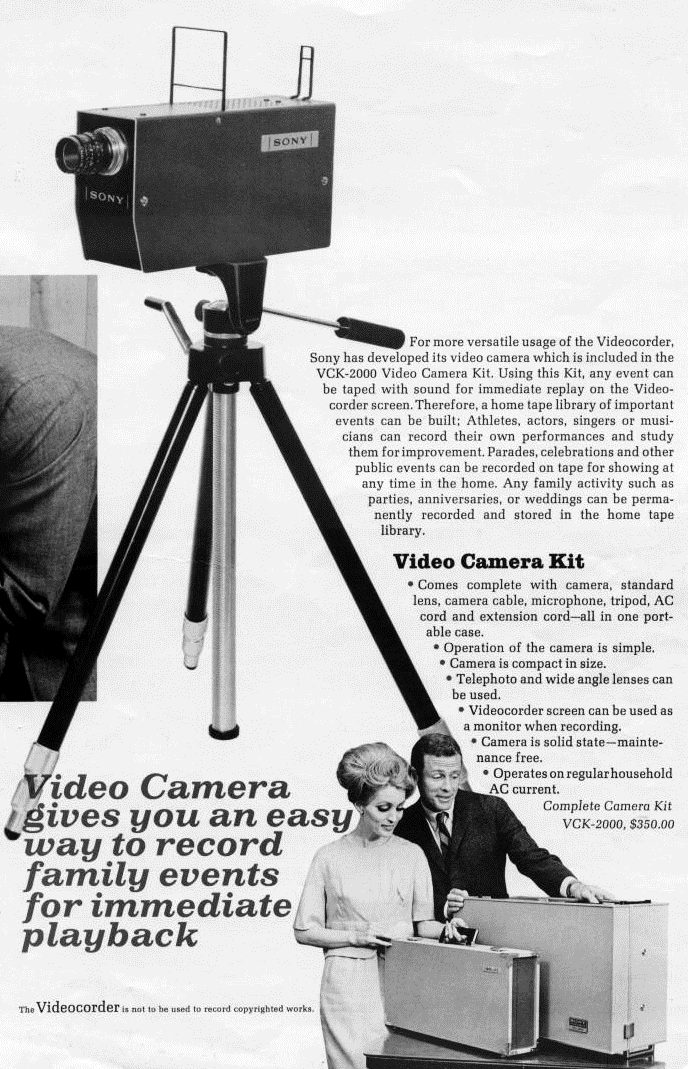

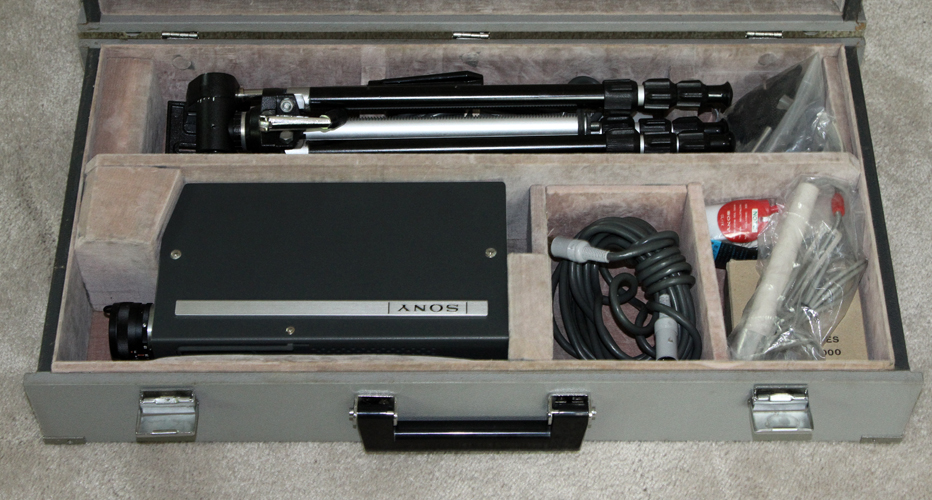

FIRST CONSUMER VIDEO CAMERA - 1965. The Sony CVC-2000 was the first domestic video camera. Intended to be used with the Sony CV-2000 video tape recorder shown five photos above. It recorded on 1/2 inch video tape. The CVC-2000 video camera was also sold with accessories in kit form as the VCK-2000 shown here. This kit was purchased off eBay in 2010 in excellent condition. The camera and mike appear to be almost unused and some of the accessory items were still in their sealed containers. The original MSRP for the CVK-2000 kit was $350, or about $2355 in 2009 dollars. The CV-2000 video tape recorder had an MSRP of $730, or about $4900 in 2009 dollars. As a result, few were sold and they are now very difficult to find. One individual who had spent his life as a Sony technician stated that he had never seen the CVK-2000 kit in person! The near new condition of this kit makes it rarer still.

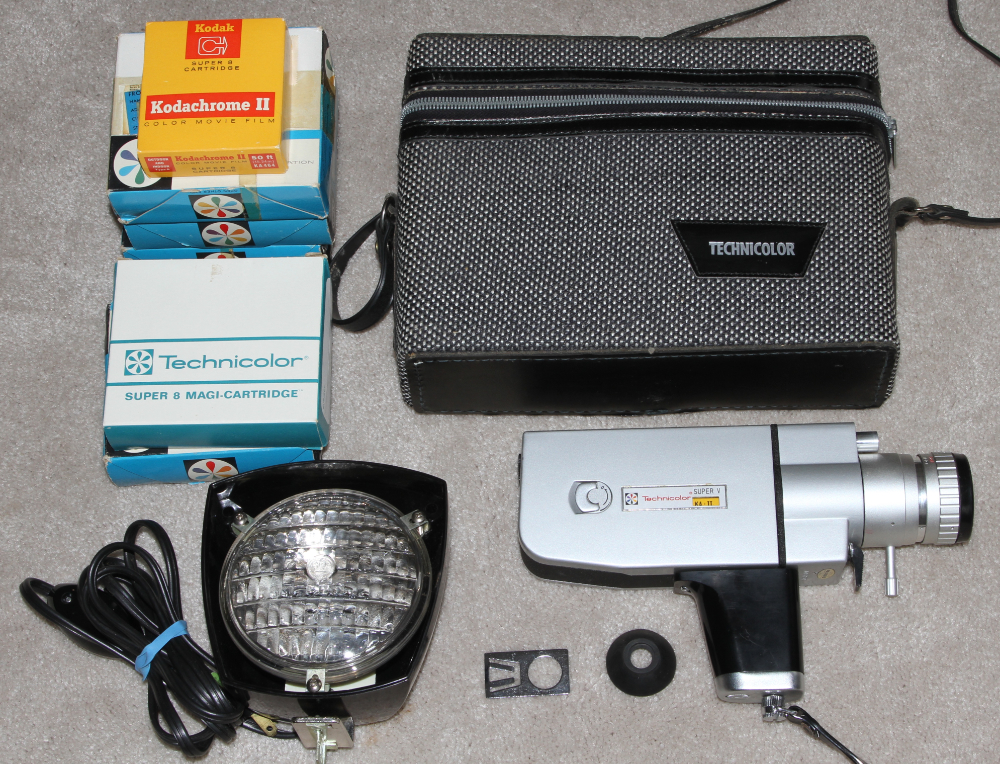

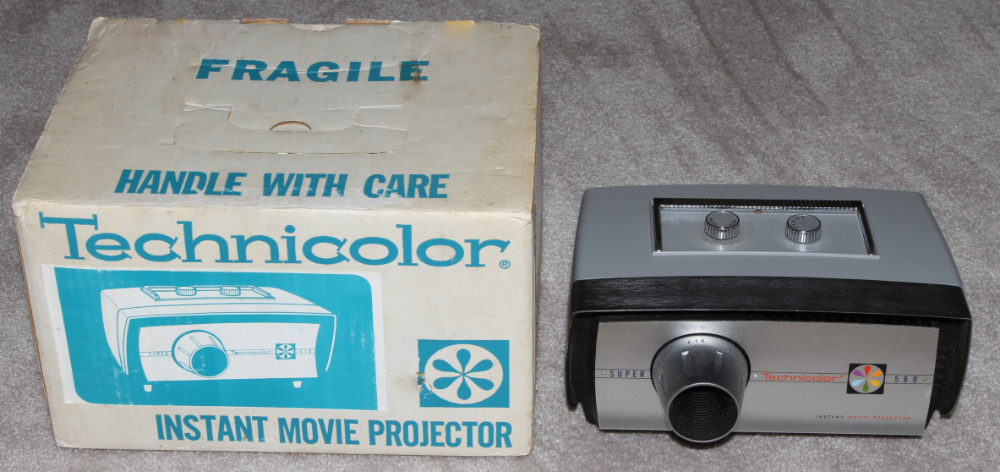

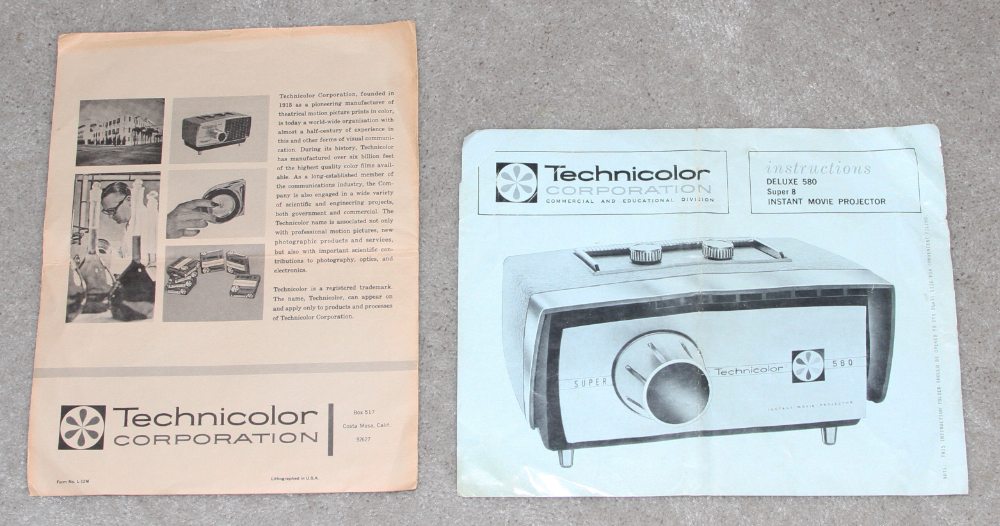

TECHNICOLOR SUPER V Movie Camera and 580 Movie Projector - 1966. Donated in like-new condition by the Ron Weidemann family. Ron and I were good friends and neighbors when we were both ICBM missile launch officers at Whiteman AFB, Missouri in the 1970's. Movie Camera - Lens: zoom f 1.8/F 9-36 mm. Film speed 25 and 250 ASA. Super Eight cartridge. Made in Japan by Saimic. Movie 580 Projector - Super Eight film loop cartridge. Made in USA by Technicolor.
FIRST EARTH PHOTO FROM VICINITY OF THE MOON - 1966. The world's first view of Earth taken by a spacecraft from the vicinity of the Moon. The photo was transmitted to Earth by the United States Lunar Orbiter I and received at the NASA tracking station at Robledo De Chavela near Madrid, Spain. This crescent of the Earth was photographed August 23, 1966 at 16:35 GMT when the spacecraft was on its 16th orbit and just about to pass behind the Moon.

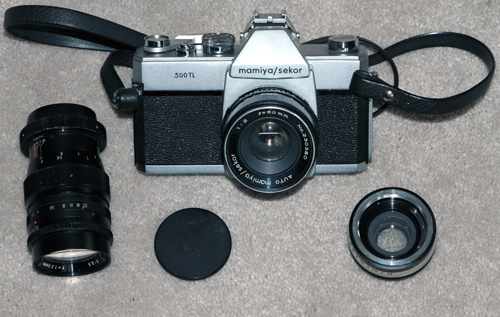

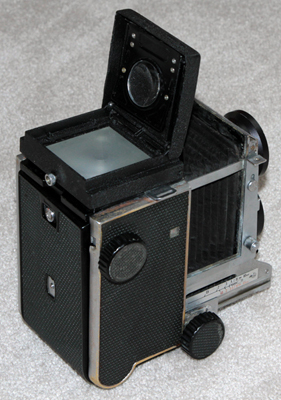

MAMIYA 500 TL - 1966. Although medium foremat photography comes to mind when the Mamiya brand is mentioned, they also produced a significant number of 35mm cameras over the years. The 500 stands for the maximum shutter speed (there were also 1000 and 2000 models) and the TL stands for through the lens light metering. Most Mamiya 35mm camras such as the one above were heavy, well-built cameras and can often be found still in near mint condition. The above camera with two lenses and a teleconverter was purchased on eBay for only $12.50!

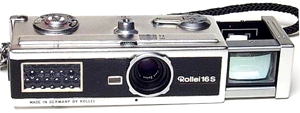

ROLLEI 16S SUBMINI - 1966. The 16S was introduced in 1966 with a total production of about 20,000. It measures 1 1/4 x 1 3/4 x 4 1/4 inches and produces 12 x 17 mm negatives on 16 mm film cassettes. 25 mm focal length, f/2.8 Zeiss Tessar lens and programmable automatic shutter. Shutter 1/30th to 1/500th second and apertures from f/2.8 to f/22. The built-in Gossen meter is coupled to the shutter and aperture scale and has provision for uncoupling for flash and time exposure. Miniature cameras such as this make an interesting collection as there are many unusual design types available at very inexpensive prices. A collection composed just of miniature cameras would be a very worthwhile and enjoyable pursuit.

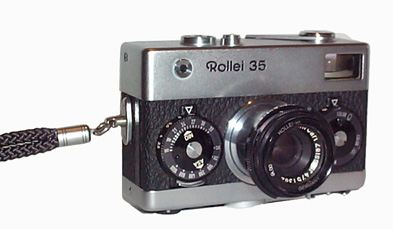

ROLLEI 35 - 1966. The Rollei 35 was introduced at the Photokina exhibition in Cologne, Germany in 1966. It was Rollei's first 35 mm camera - world's smallest camera for 35 mm film, packed with superb optical and mechanical workmanship and small enough to fit in a shirt pocket, the world's smallest mass-produced 35mm camera.

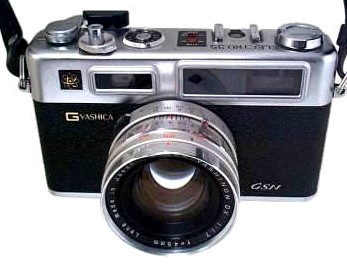

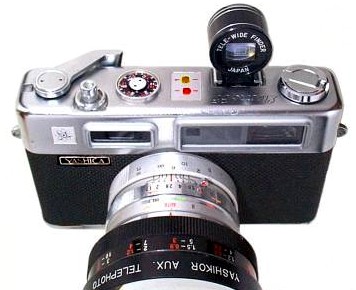

YASHICA ELECTRO 35 - 1966. A major Yashica innovation was a unique automatic all electronic stepless shutter, the speed of which was controlled by an Electro-Magnet. This gave rise to the model designation "Electro." The correct exposure was determined by turning the aperture ring until neither the red nor amber lamps are lit. These are visible both on the top of the camera and in the view-finder. A small arrow visible next to the lamps on the top plate, indicates the direction in which the aperture ring must be turned in order to achieve the correct exposure range. It also warns when exposures time will be so long that a rigid mount is required. The Electro 35 was a very popular camera and there were many models over the years. An original 1966 Electro 35 is shown on the left with optional Tele Adapter and viewfinder. An Electro 35 GSN (1973) is shown on the right. The Electro 35 did for amateur still photographers what the Yashica Super 60E movie camera (below) did for amateur movie makers - obtained correct exposures almost every time. http://www.yashica-guy.com/document/chrono.html
FIRST PORTABLE VTR - 1967. Sony introduces the first portable VTR, the DV-2400.

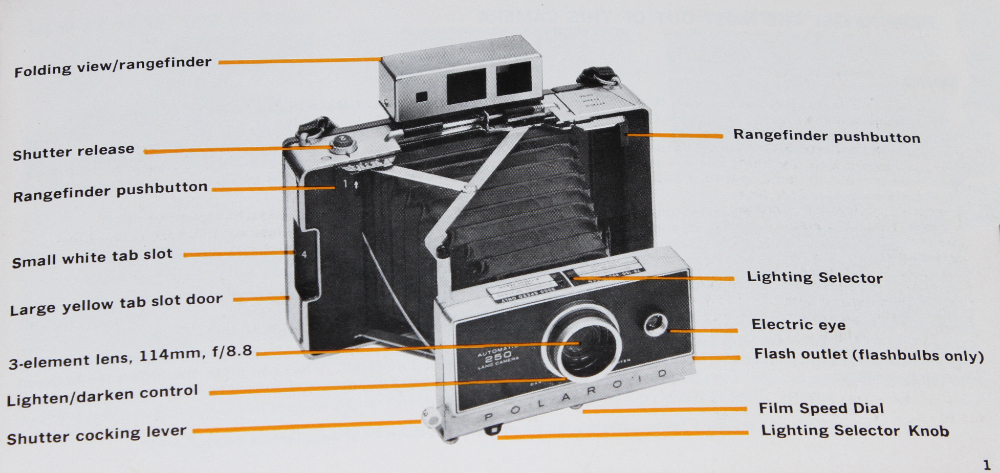

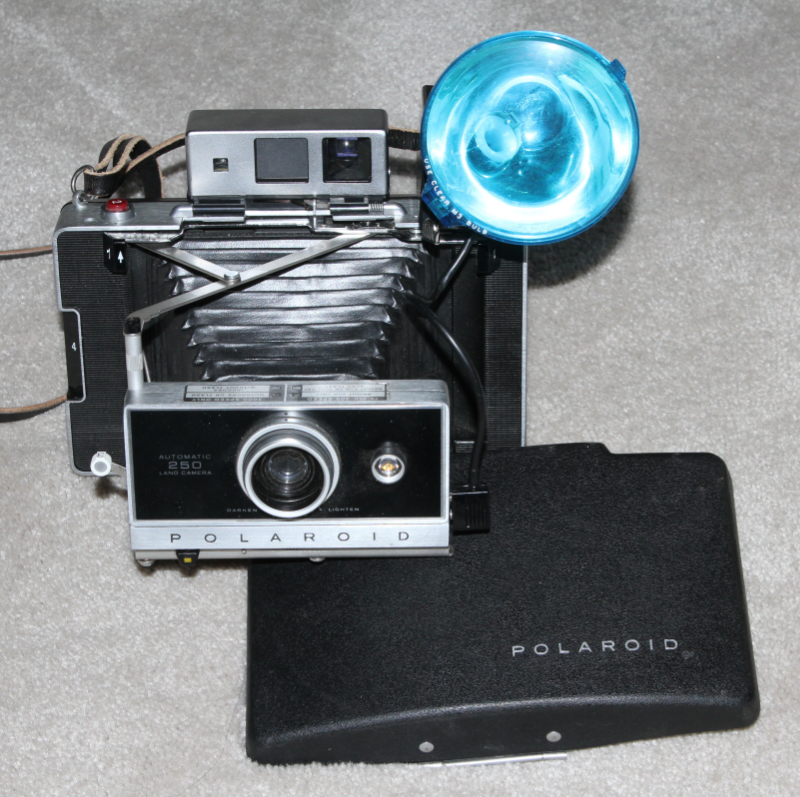

POLAROID LAND MODEL ACTION 250 - 1967. The 250 was one of the higher-end models of the 100-400 series line of folding Packfilm Land Cameras, similar to the 100, 350, 360 and 450 models; it lacks the electronic development timer of the later (higher-numbered) models, but early models of the 250 have a larger viewfinder window than the later Zeiss-Ikon rangefinder models - both models of eyepiece are functionally identical but the earlier model has a larger window at the rear. Partway through the 250's life cycle the viewfinder was changed to match the same type that would be used on the 350 and 450 models, effectively meaning there were 2 versions of the 250 produced. The 250 was produced from 1967 until 1969 (when it was replaced by the 350), retailing on release for $160. The above camera was donated by our dear friend, Joan Klonowski, of Grants New Mexico.

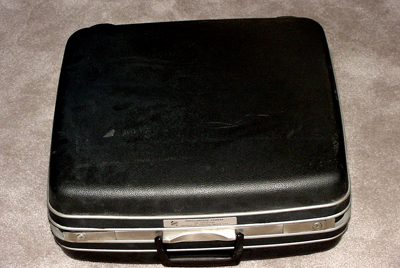

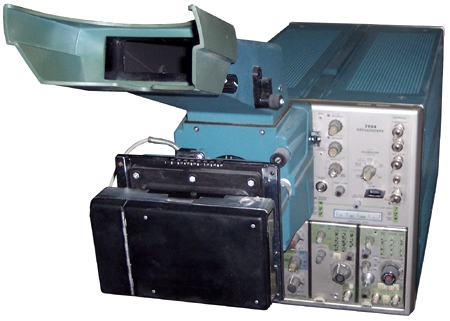

TEKTRONIX C-12 - 1967. In addition to the everyday cameras that we are all familiar with, there are zillions of cameras (my wife told me a thousand times not to exaggerate) specially adapted for industrial or scientific requirements. Above is one such camera, the Tektronix C-12 Oscilloscope camera used to record oscilloscope cathode ray tube (CRT) traces. The first photo is the C-12 with a Polaroid back attached. The second is of a typical Oscilloscope and the third is the C-12 attached to an Oscilloscope ready for use. The Tektronix camera came in a fitted hardcase similar to a Samsonite suitcase. If you are interested in starting some type of camera collection, one possibility is out-of-the-mainstream cameras such as the C-12. Judicious buying can result in a nice collection at very little cost. The above C-12 in like-new condition with case was obtained on eBay for a winning bid of $1!

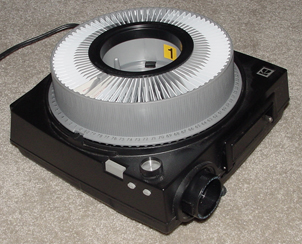

KODAK CAROUSEL 750H - 1967. One of many types of slide projectors produced over the years, but the space-efficient rotating design of the slide tray made it the most popular among consumers. For individual viewing of slides, a small battery lit viewer such as the GAF Pana-Vue can be used.
FLOPPY DISK DRIVE - 1967. The floppy disk drive (FDD) was invented at IBM by Alan Shugart in 1967. The first floppy drives used an 8-inch disk (later called a "diskette" as it became smaller), which evolved into the 5.25-inch disk that was used on the first IBM Personal Computer in August 1981. Click on image for large view. http://www.howstuffworks.com/floppy-disk-drive1.htm
FIRST SOLID STATE IMAGER PATENT - 1968. "All Solid State Radiation Imagers." U.S. patent # 3,540,011. Filed September 6, 1968, granted November 10,1970. Abstract: " A flat screen target for receiving and storing an optical image is composed of an array of photosensitive diode elements each serially connected with a capacitor to form an array two terminal devices having each of their respective first terminals interconnected along a plurality of row lines and each of their respective second terminals connected along a plurality of column lines. Sequential coincident pulses are applied along respective row and column lines for reading the stored condition of each two terminal device." Designers: Edward H. Stupp (Spring Valley NY), Pieter G. Cath (Briarcliff Manor NY) and Zsolt Szilagyi (Ossining NY) - research engineers and physicists at Philips Labs in Briarcliff Manor NY. Patent assigned to Philips Corporation (U.S. Patent Office). Breadboard models of the device were constructed.

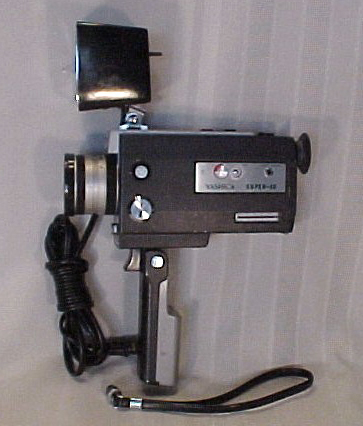

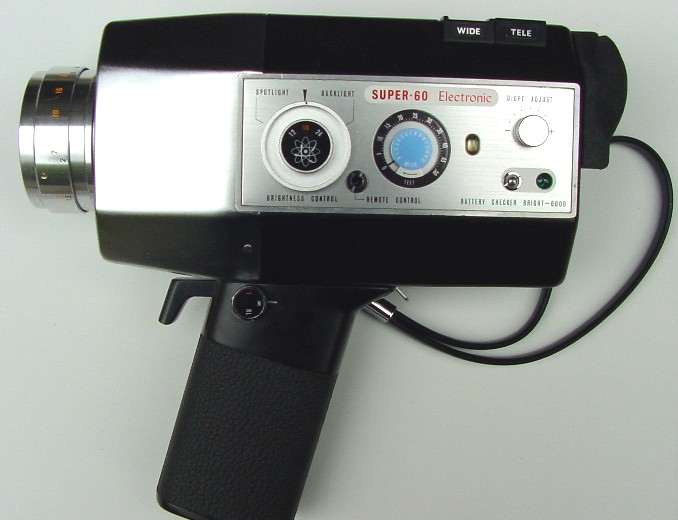

SUPER 60E / 40E MOVIE
CAMERAS - 1968. 60E: Lens:
Yashinon-DX El. Zoom 1,8 / 8 - 48 mm. Microprism Focusing.
Zoom. Frame rates: 12,18,24 + single
frame. Auto Exposure. Backlight Control. +/-
correction for auto.
Remote control socket. No
sound. 4 X AA batteries + No separate
battery for light meter. MSRP about
$240. 40E: Lens: Yashinon-Dx El. Zoom 1,8 / 9 - 36 mm. Microprism Focusing. Auto Zoom. Frame rates: 12,18,24 + single frame. Auto Exposure. No sound. Electronic movie cameras of this
type were a boon to amateur movie makers who were used to over / under
film as a routine matter when dealing with movie cameras that required
to guess at correct aperture and focus. For you collectors, the 40E was purchased on eBay in like-new condition for $1!

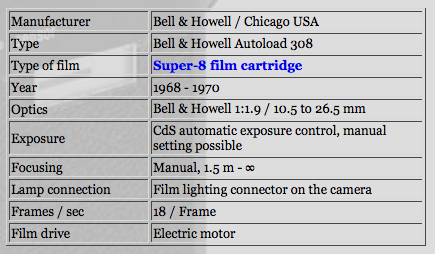

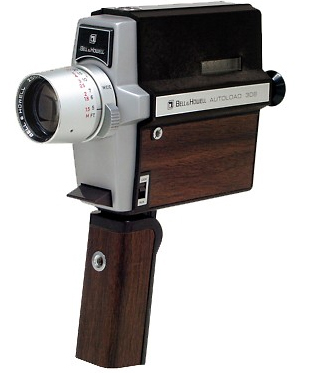

B&H AUTOLOAD 308 - 1968. The 308 was purchased on eBay with case and manual in like new condition for $17. The original MSRP was $100, which would be $671 in 2013 dollars.

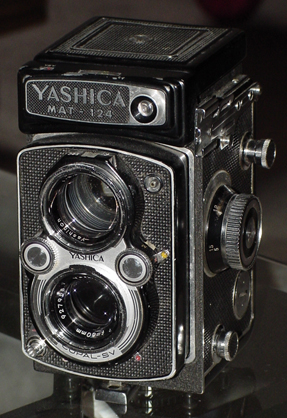

YASHICA-MAT 124 - 1968. Typical twin lens medium foremat film camera of the era.

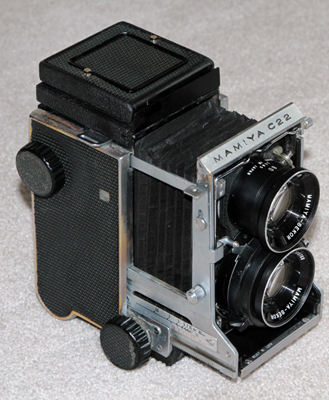

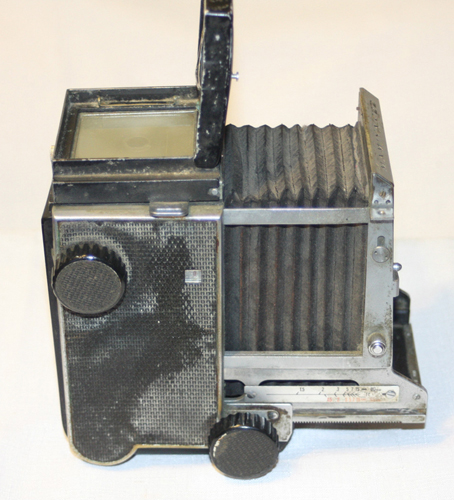

MAMIYA C22 - 1966-68. Mamiya also made a great many TLR medium format cameras of the120mm or 220mm size, but they were one of the few that made them available with interchangeable lenses - normal, wide angle and telephoto. Their bulky size and lack of internal electronics for automatically setting aperture and speed made thier sales relatively low compared to the smaller and lighter weight 35mm cameras that have ruled the amateur and semipro photography world for so long. But they may be getting the last laugh. The various Mamiya models now sell at very high premiums on eBay compared to many of their 35mm cousins, including digital models. For example, excellent condition, highly sophisticated Fuji S5200 digicams are now being offered on eBay for as little as $50 while Mamiya TLRs may be bid up to $400-500 or more.
Of course, the C22 shown above didn't command nearly that much of a price due to its abysmal condition. It appears to have been stored for safe keeping in the community garbage dump! Even so, with a lot of elbow grease, krinkle paint, and the addition of an excellent quality lens, it makes a reasonable display item. Total cost for both camera and lens, including shipping, was $73.

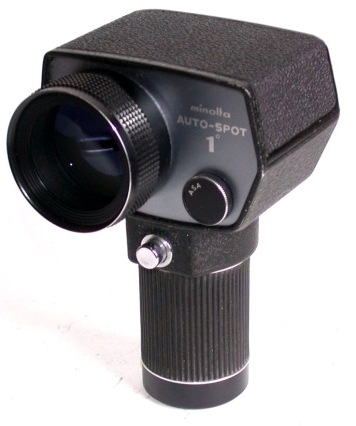

MINOLTA AUTO-SPOT 1 - 1968. Before built-in light meters became common many photographers used hand-held light meters of various types to help ensure a properly exposed photograph. Even after camers with built-in light meters came onto the market many photographers continued to use separate light meters, and some still do today. The Minolta Auto-Spot 1 was a spot meter of somewhat unusual design and very popular with users of the Zone system for larger format cameras. Using this meter was the equivalent of metering a scene with a 2000mm lens attached to a 35mm camera. It was large, heavy and expensive, but accepted filters, had a focusing lens, and had a circular readout in the viewfinder which automatically showed a full range of usable f-stop/shutter speed combinations.

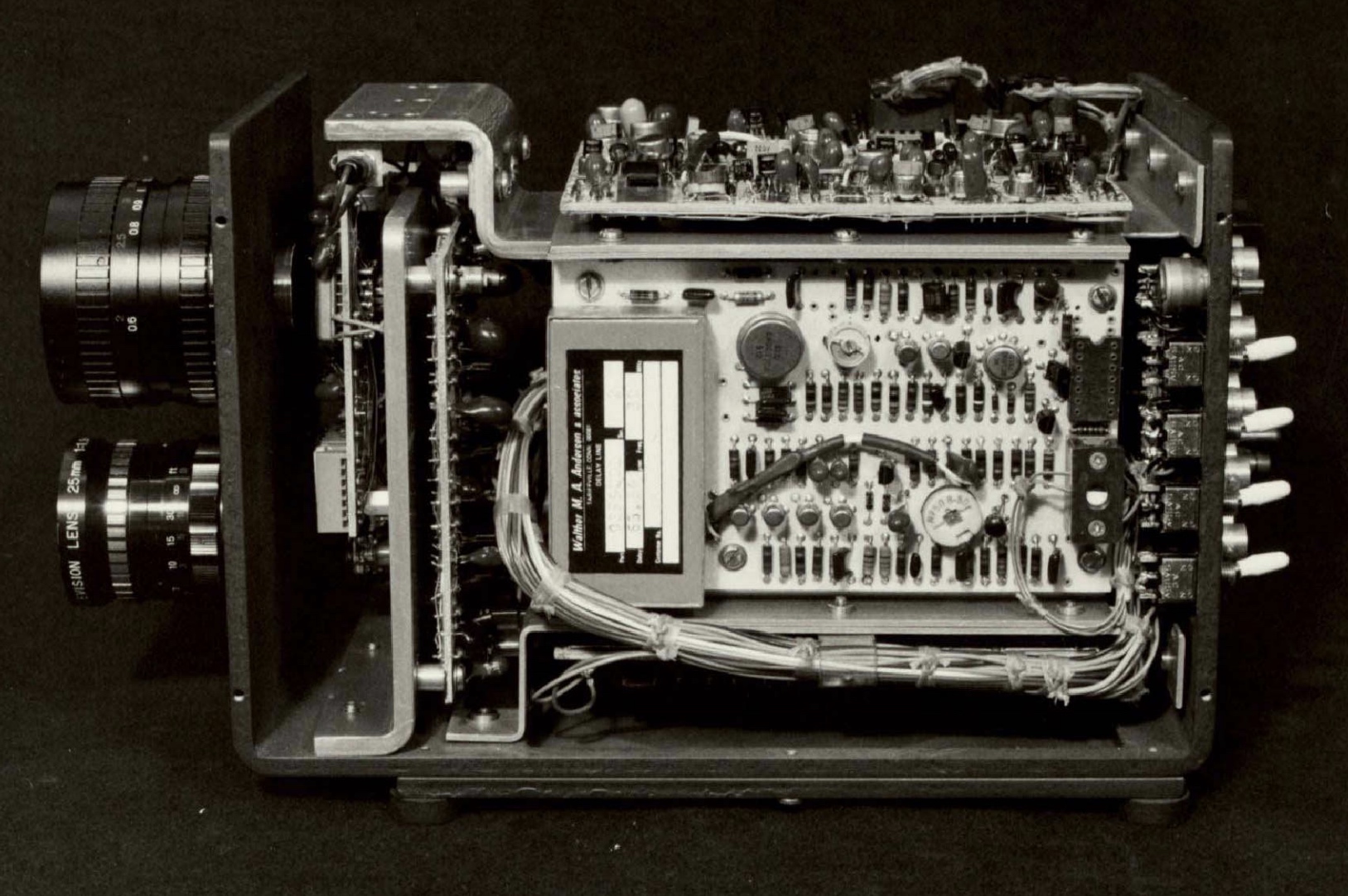

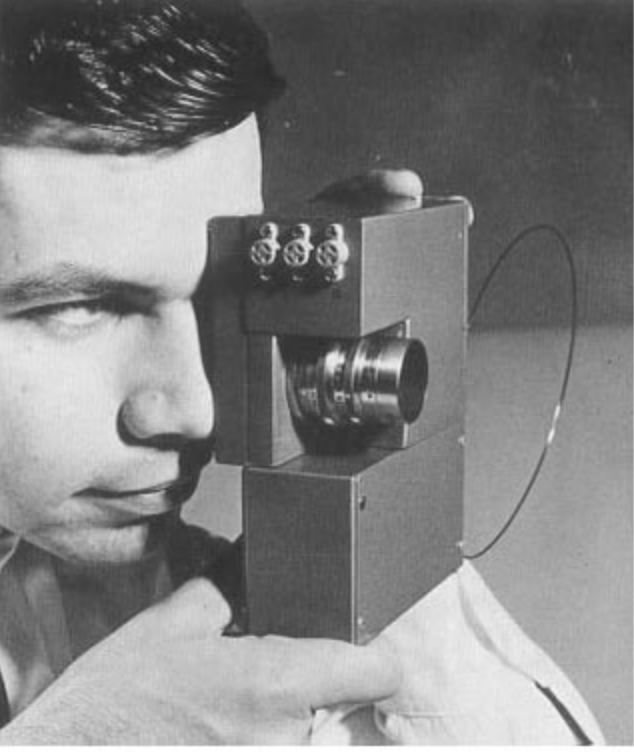

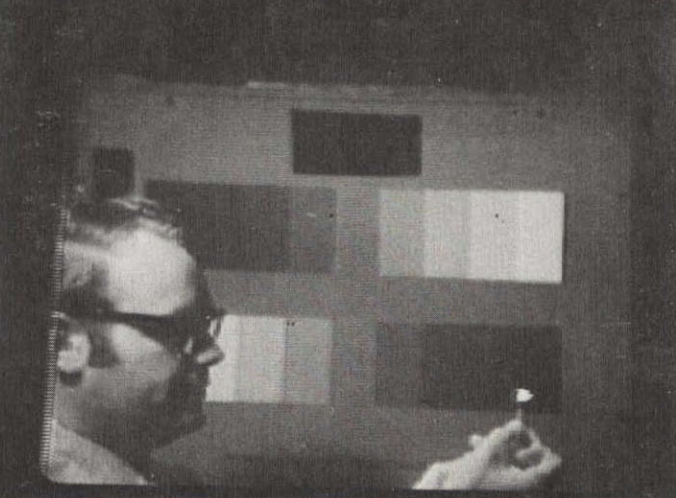

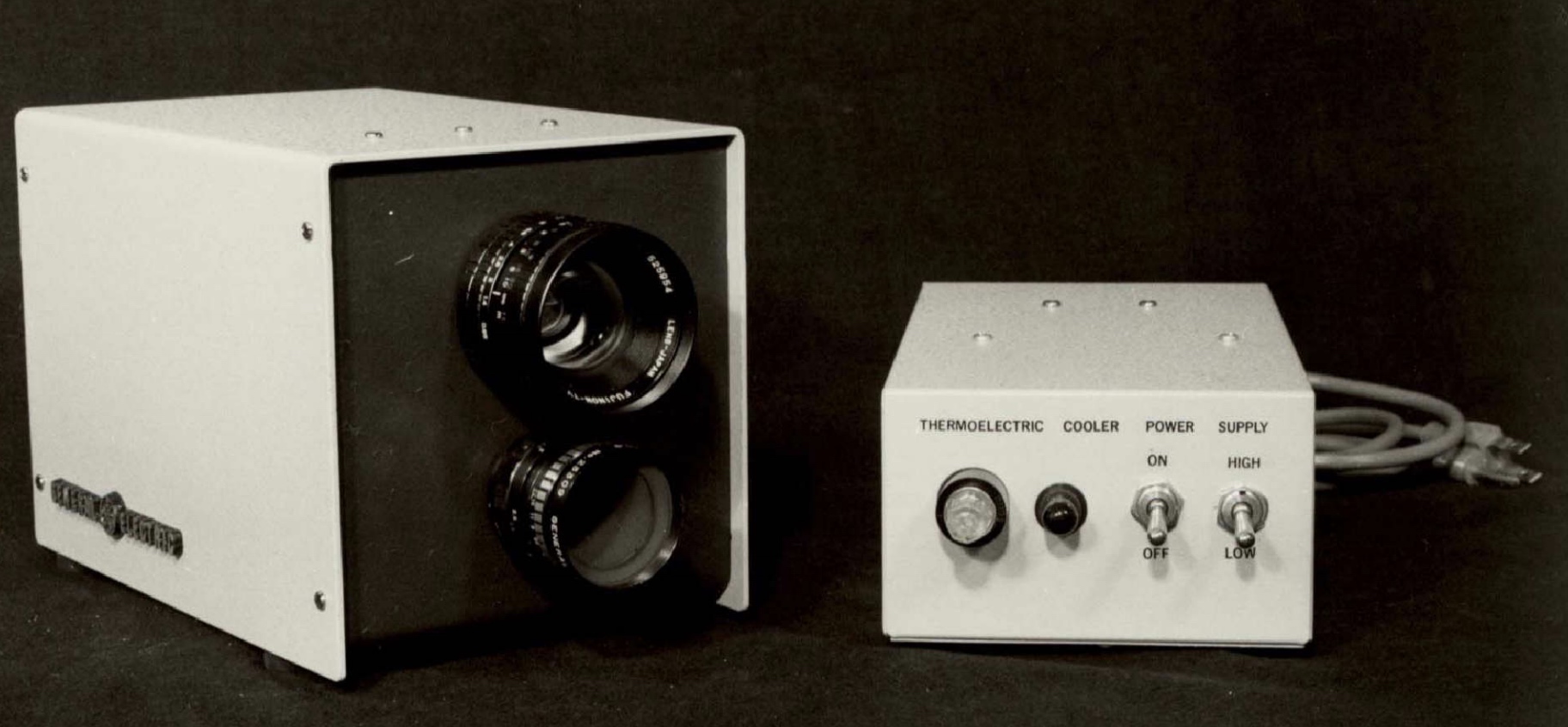

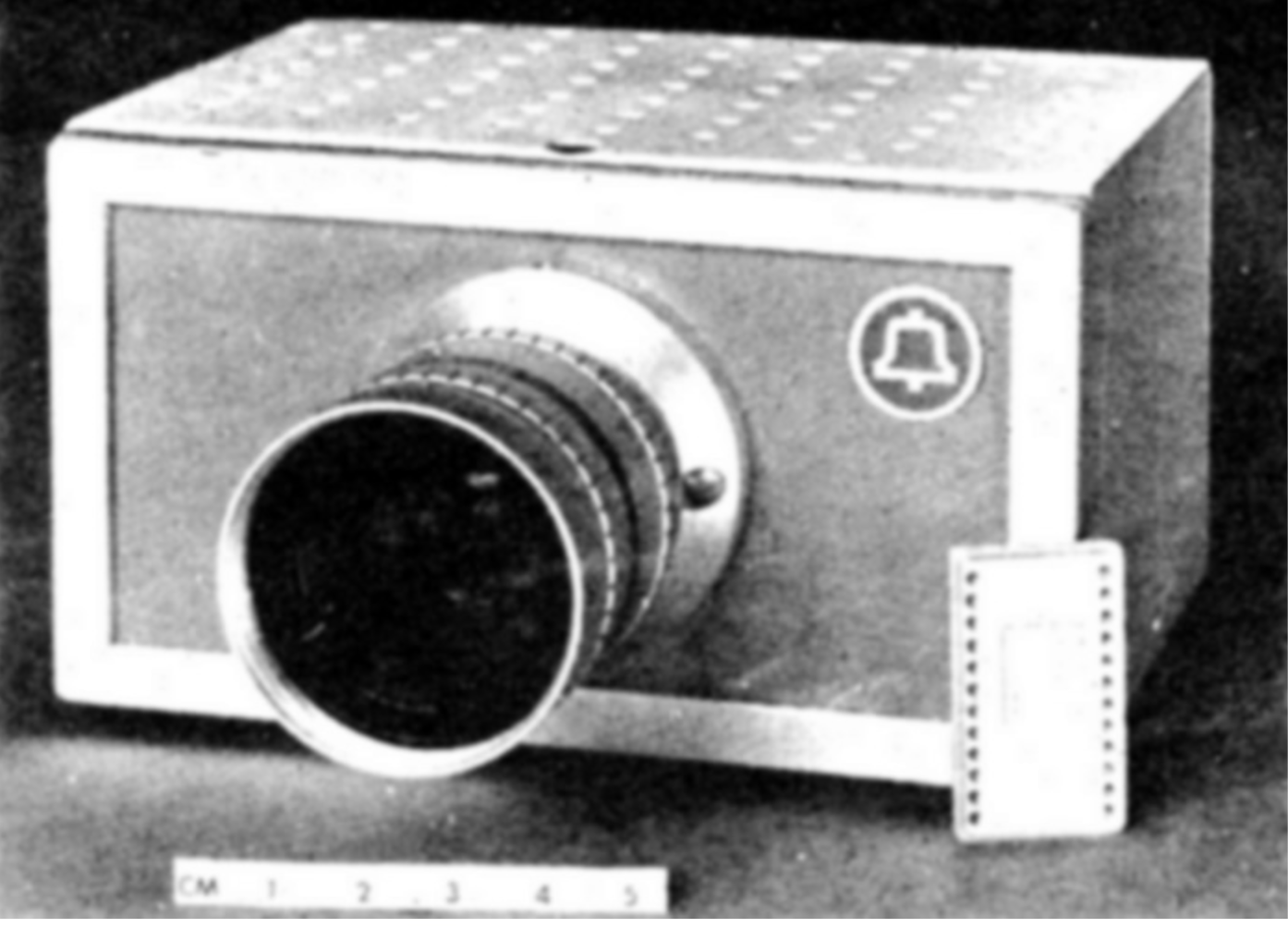

EARLY SOLID STATE CAMERAS - 1960s AND 70s. The Museum of the Broadcast Television Camera (see first URL below) contains photos and information concerning early solid state cameras as well as many valuable references and links for researchers. Top above are two such cameras, the RCA television camera of 1968 and the Bell Labs 256 x 220 pixel CCD television camera of 1974.
second row of photographs is of a 1976 General Electric solid state
camera using a Charge injection Device (CID) 244 x 248 element array
developed for NASA. The first photo is the camera
exterior. The second photo is the camera interior. The
third photo is a sample image.

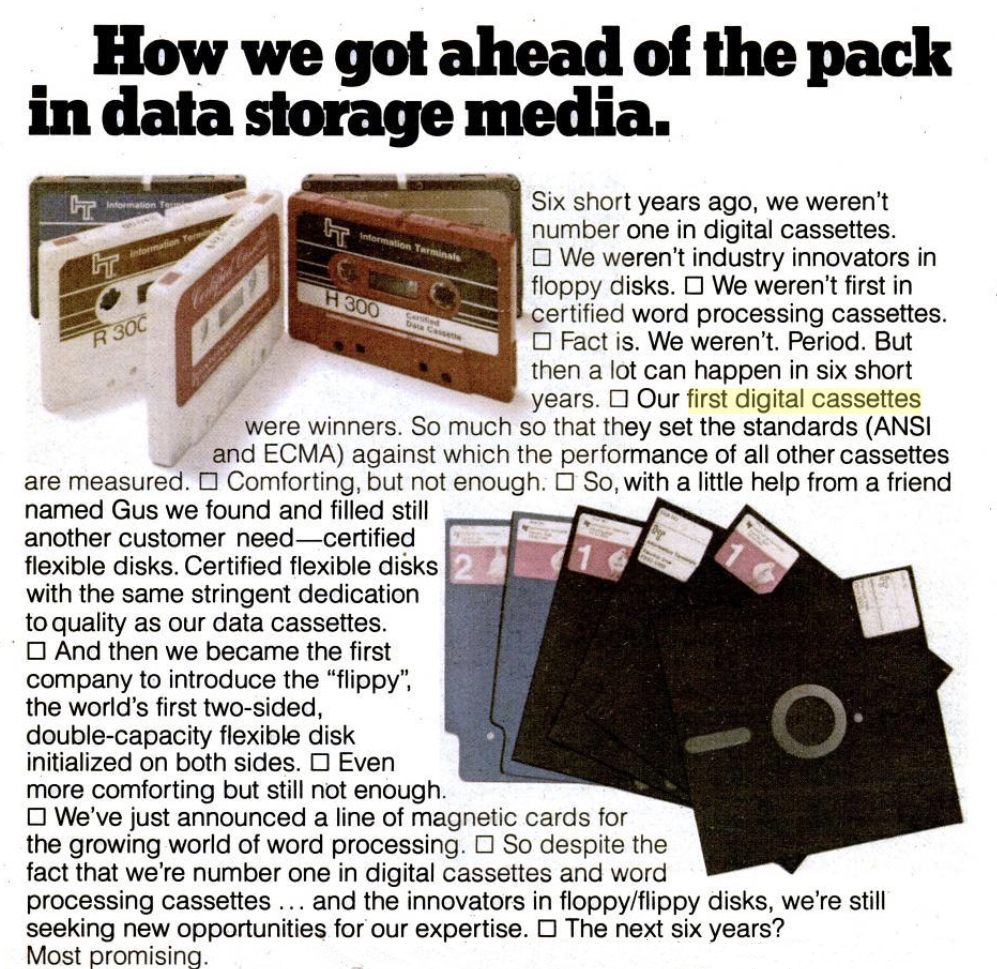

1975 Ad Mentioning Digital

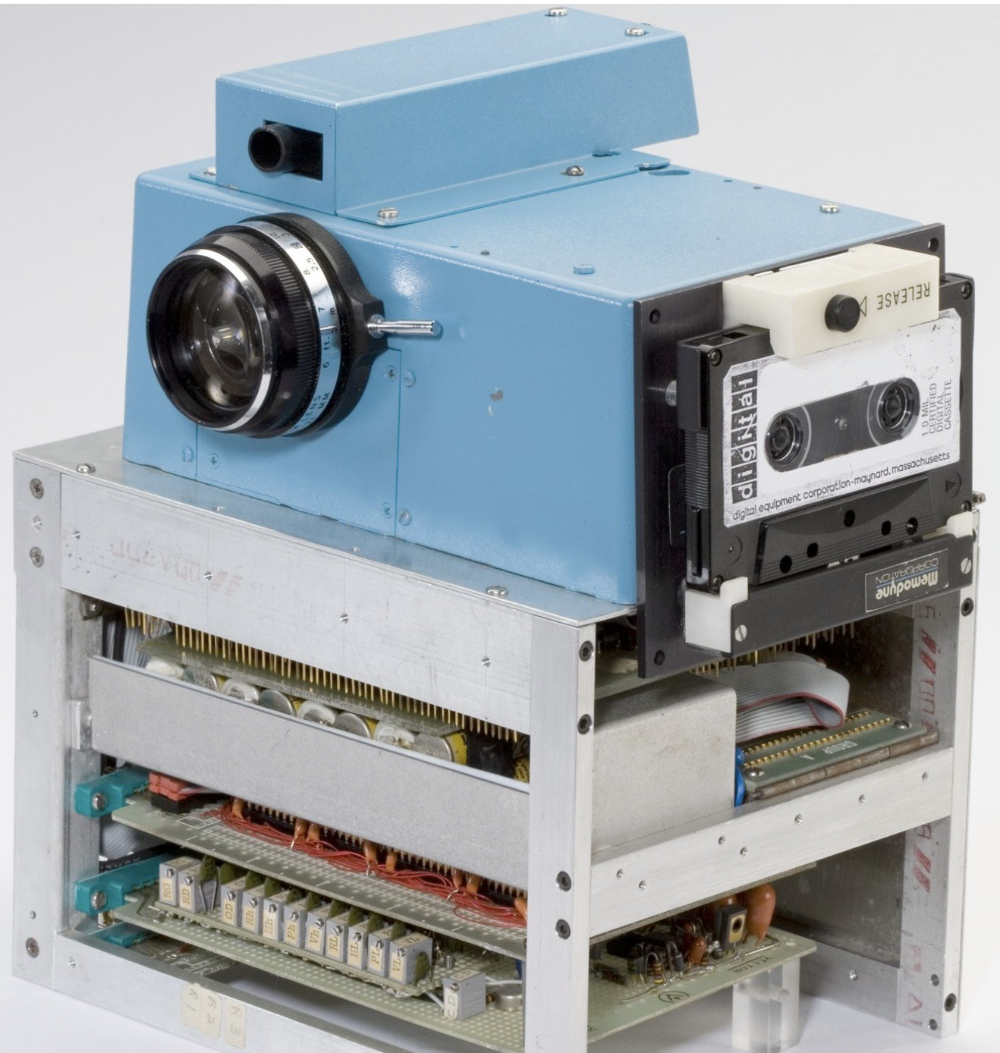

1975 Steve Sasson prototype digital camera

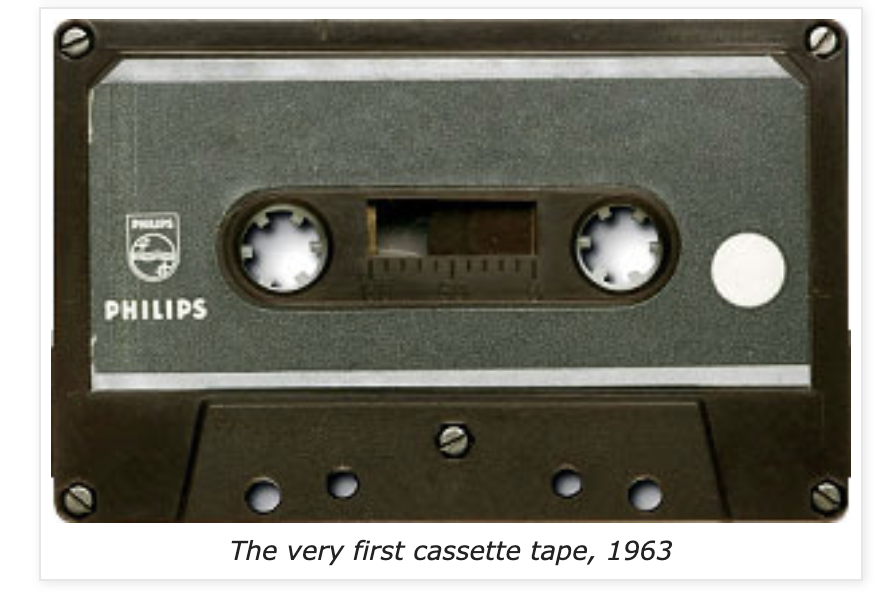

Phillips Compact Cassette of 1963

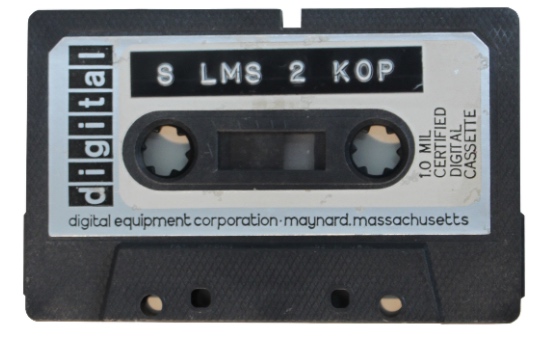

Digital Cassette of 1975
DIGITAL CASSETTES - 1969. The Cassette Tape, or Compact Cassette, was first developed by the Philips company in 1962 in Belgium. Philips released the invention to Europe at the Berlin Radio Show on August 30, 1963. A short time after that (no exact date found) digital cassettes tapes were marketed. The above advertisment by Information Terminals Corporation in the 27 August 1975 issue of Computer World states that, "Six short years ago we weren't number one in digital cassettes." This ad indicates that by 1969 digital cassettes had been marketed. Why are we discussing the Digital Cassette on a digicam history site? Because it was used as storage media in at least one digital camera - Steve Sasson used a digital cassette in his prototype digital camera of 1975 (see above).
PHOTOGRAPHS OF EARTH FROM THE MOON - 1969.
The descent to the moon by the lunar lander from Columbia, the command
module, encountered numerous difficulties. Communications were
and a number of alarms signaled potential problems with the
An abort situation seemed imminent, but the astronauts took manual
of the lander and maneuvered it across an area strewn with large rocks
to a safe landing position, touching down with only 20 seconds of fuel
to spare. As the lunar lander (Eagle) settled into the fine dust
of the moon's surface, Neil Armstrong, commander of Apollo 11, spoke
first words from the moon: "Houston. Tranquillity Base here. The Eagle
has landed" A Westinghouse television camera attached
to leg of the lunar lander broadcast live images of man's first walk on
the moon, 20 July 1969, as Commander Armstrong stepped from the lunar
The first words spoken by Commander Armstrong from the moon's surface
"That's one small step for a man, one giant leap for Mankind".
NASA's home page for an unlimited number of photos of the moon, the
the sun, our galaxay, and the universe. Click on footprint and
images to see enlarged views. Westinghouse camera on the
THE CCD, CHARGE-COUPLED DEVICE - 1969. Willard Boyle and George Smith originated the basic design for the CCD. The CCD is a light-sensitive integrated circuit used in a wide variety of applications, primarily imaging. In the space of an hour on October 17, 1969, Boyle and Smith sketched out the CCDs basic structure, defined its principles of operation, and outlined applications including imaging as well as memory. The device they invented stores information, represented by discrete packets of electric charge, in columns of closely spaced semiconductor capacitors. With multiple columns side by side, a CCD chip can record images. Reading out the information for processing, display, or more permanent storage, is accomplished by shifting stored charges down the columns, one position at a time. Click on image for enlarged view and photo of their original notes whereby they designed the first CCD..

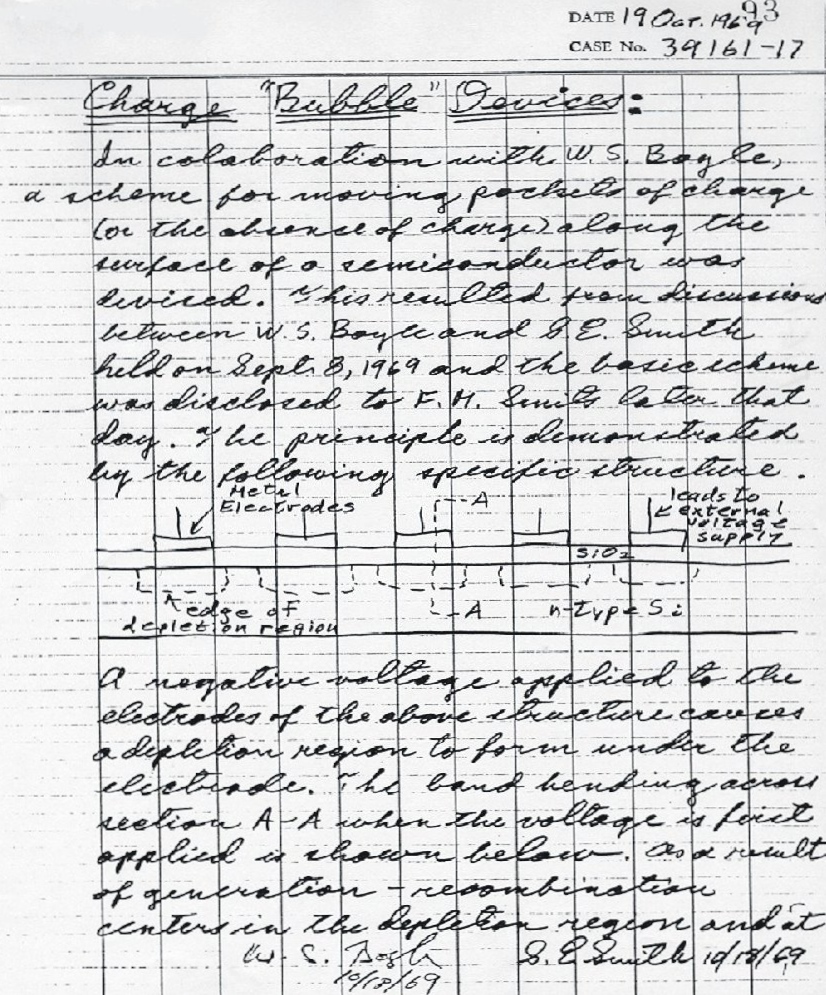

A page from the lab notebook
of Boyle and Smith where they write out the ideas they discussed and
wrote onto a blackboard two days earlier. Boyle and Smith sent a
copy of this and several other pages to Jim Janesick, an electronic engineer who worked for the Jet Propulsion Laboratory (JPL).
Janesick soon became the lead engineer at JPL for developing
CCDs. More on Jim Janesick and the development of CCD and CMOS
imagers can be seen in the middle of the 1970s page.

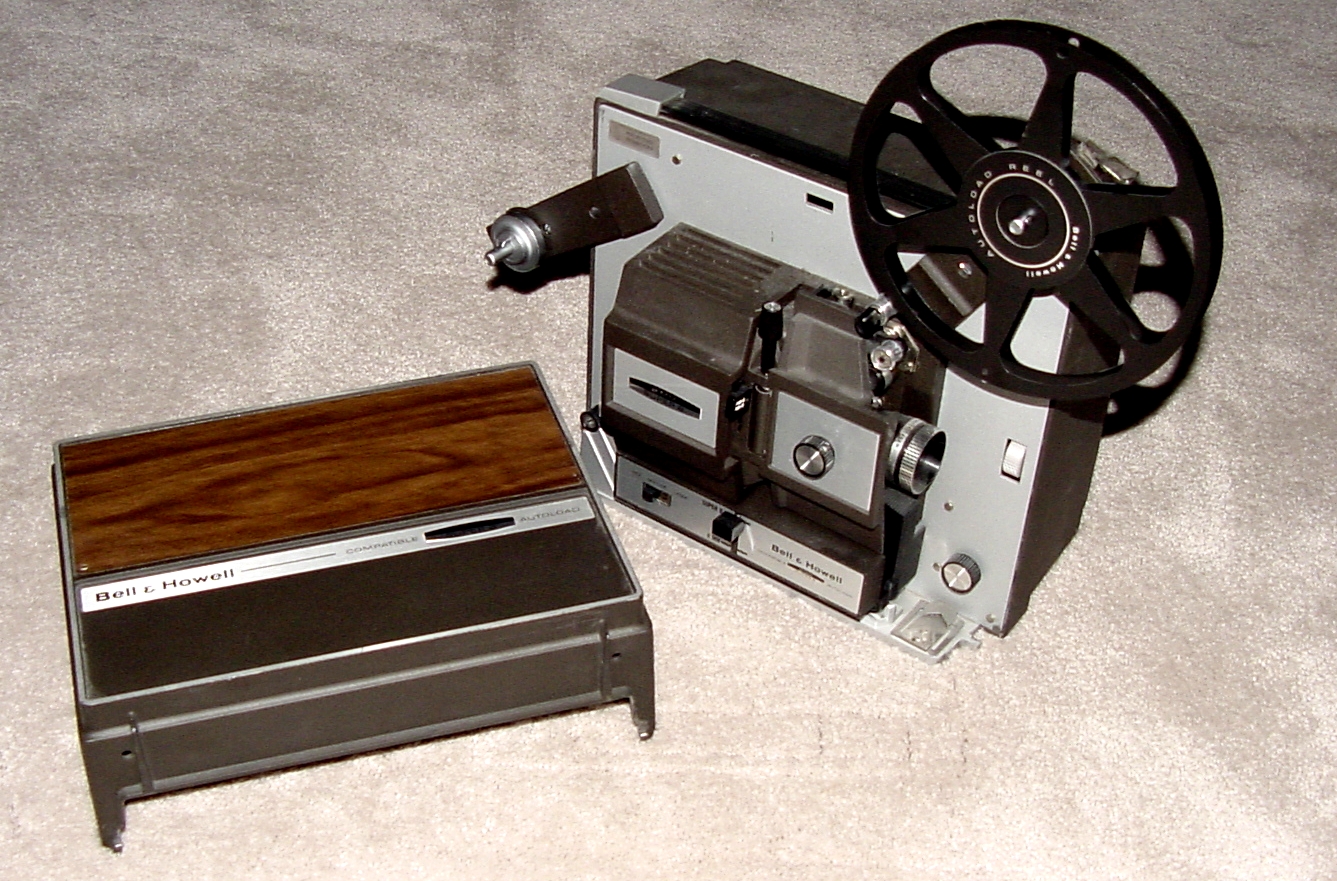

BELL & HOWELL AUTOLOAD SUPER 8 456A - 1969. Typical home 8mm movie projector of the era. Shown below are an Argus 768 film editor and Kodak film splicer used by 8mm film photographers to edit home movies.

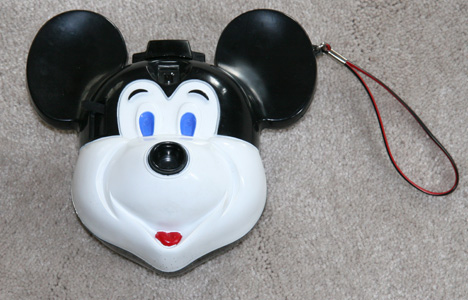

MICK-A-MATIC, MICKEY MOUSE CAMERA - 1969. 126 film camera. The first version of this camera used the right ear as a shutter release. Later versions had the shutter release on the side of the head. Popular Photography, January 1987, p32.
